xTool Ultimate Robot Kit V2.0 – 10+ programmerbara robotformer, MegaPi-kontroller, STEM-robotsats

Powered by the Makeblock MegaPi—an Arduino Mega 2560-based controller with 4 RJ25 ports, 10 servo ports, 8 DC motor ports, and I2C/SPI expansion—the xTool Ultimate Robot Kit V2.0 delivers professional-grade robotics in a modular, anodized 6061 aluminum chassis. Build and program over 10 official robot forms, from a robotic arm tank to a self-balancing robot and even a robotic bartender, using Scratch, C/C++, or Python.

Overview

This comprehensive STEM kit is engineered for learners aged 12 and up, as well as serious hobbyists. It includes two encoder motors, a 9g servo, ultrasonic, line-follower, and gyro sensors, plus an IR receiver for remote control. The MegaPi controller supports Bluetooth 2.0 and USB Type-B connectivity, enabling wireless or wired programming and control. With 6V–12V DC input and 5V/3.3V outputs, it is compatible with the entire Makeblock ecosystem and Raspberry Pi via expansion.

What stands out

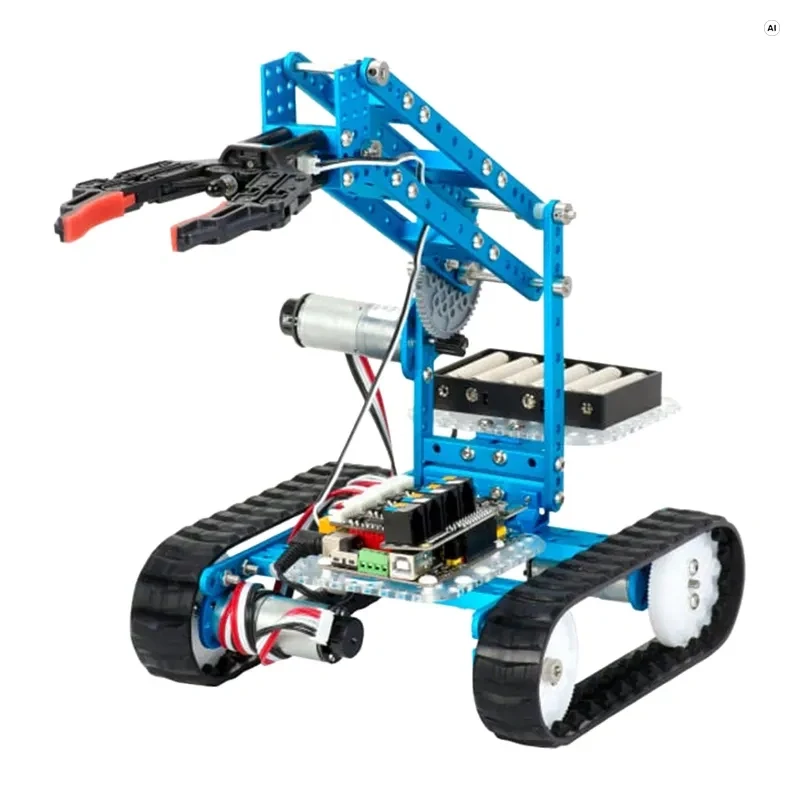

• 10+ official robot forms: robotic arm tank, self-balancing robot, bartender, and more
• Makeblock MegaPi controller based on Arduino Mega 2560 for versatile programming
• Supports graphical Scratch (mBlock), Arduino C/C++, and Python coding environments
• Anodized 6061 aluminum frame for durability and precise assembly
• Bluetooth and USB connectivity for wireless or wired control

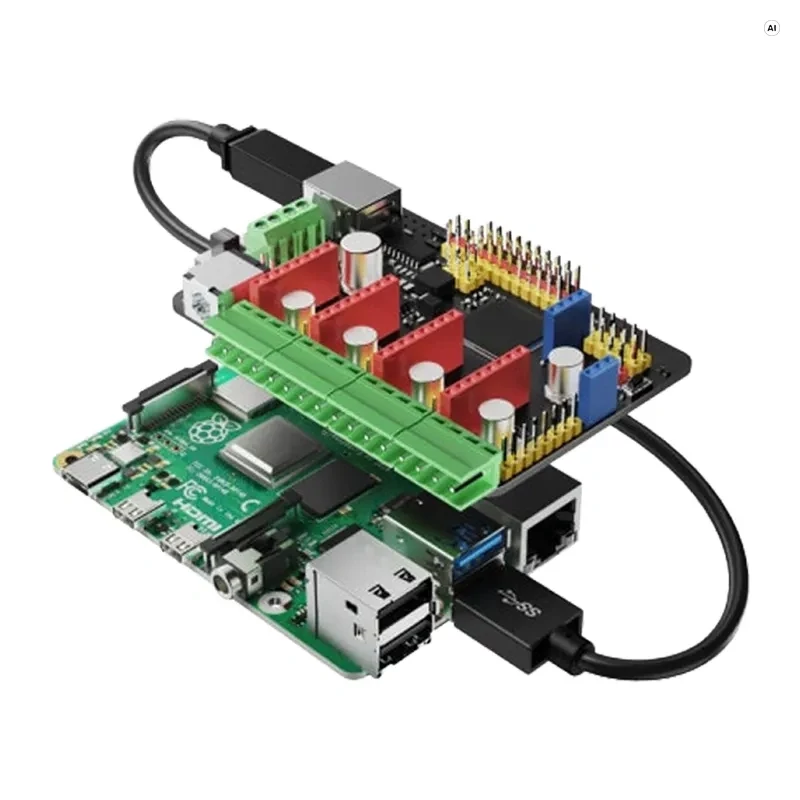

• Modular design compatible with Makeblock parts and Raspberry Pi

Technical details

• Controller: Makeblock MegaPi (Arduino Mega 2560 compatible)
• Input voltage: 6V–12V DC; output: 5V and 3.3V
• Connectivity: Bluetooth 2.0, USB Type-B
• Included sensors: ultrasonic, line follower, gyro, IR receiver
• Included actuators: 2x encoder motors, 1x 9g servo
• Chassis: anodized 6061 aluminum extrusions
• Power: 6x AA batteries (not included) or 12V DC adapter (not included)
• Expansion ports: 4x RJ25, 10x servo, 8x DC motor, I2C, SPI
• Compatibility: Makeblock, Arduino, Raspberry Pi
• Age: 12+ years

Our verdict

A serious robotics platform that grows with the user, offering real-world engineering experience and multi-language programming support.
