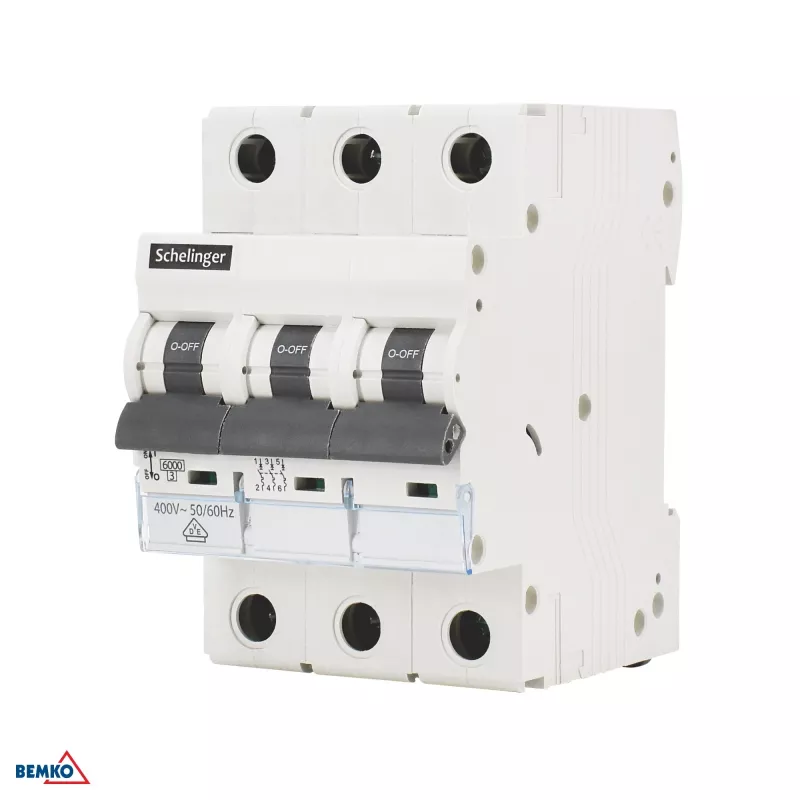

SCHELINGER dvärgbrytare 6kA 3P C 6A VDE

The SCHELINGER A02-G8-3P-C06 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a 6kA breaking capacity and C-curve tripping characteristic, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general power distribution.

Advantages

This MCB offers robust protection with a compact 3-module design, easy DIN rail mounting, and screw terminals for secure wiring. It is VDE and CE certified, ensuring compliance with international safety standards. The C-curve provides optimal protection for inductive loads, while the high breaking capacity ensures safety under fault conditions.

Suitable for

• Residential and commercial electrical panels
• Lighting circuits
• General power distribution
• Inductive load protection (e.g., motors, transformers)

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current: 6 A
• Tripping Characteristic: C-curve
• Short-circuit Breaking Capacity: 6 kA
• Rated Voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Standard: EN 60898-1
• Certification: VDE, CE
• Terminal Capacity (Rigid): Up to 35 mm²
• Terminal Capacity (Flexible): Up to 25 mm²
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Protection Degree (Terminals): IP20
• Protection Degree (Front): IP40
• Operating Temperature: -25°C to +55°C
• Energy Limiting Class: 3
• Connection Type: Screw terminals
• Module Width: 3 modules (52.5 mm)

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This MCB is suitable for use in distribution boards and sub-distribution boards. Always verify compatibility with your system's voltage and current requirements.
