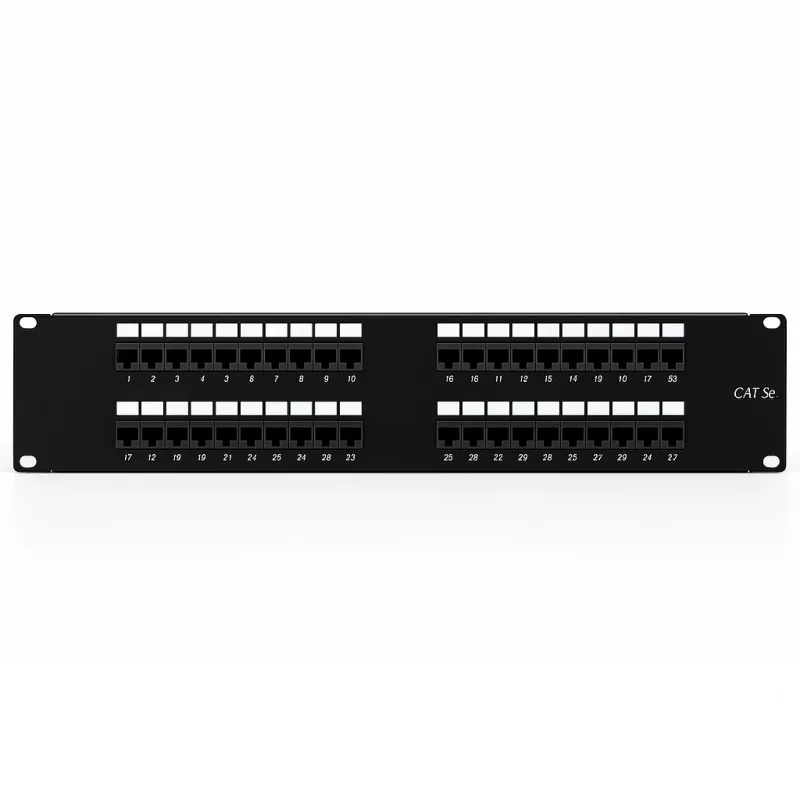

DSIT 19 inch 32-portars Cat5e UTP-patchpanel

Handle Gigabit Ethernet traffic with confidence using this 32-port Cat5e UTP patch panel, engineered for 19-inch racks and delivering a full 1000 Mbps data rate across every port.

Overview

Built for high-density network installations, this DSIT patch panel provides 32 RJ45 ports in a compact 1U rack-mount form factor. It supports Category 5e unshielded twisted pair cabling, making it ideal for Ethernet and LAN applications where reliable performance is critical. The panel features LSA/IDC rear terminations with TIA/EIA 568A/B color coding for fast, error-free installation. A rugged steel housing with integrated grounding ensures long-term durability and signal integrity.

What stands out

• 32 ports in 1U rack space for efficient use of rack real estate
• Cat5e UTP support with Gigabit Ethernet speed capability
• Rear cable management bar included for neat, organized cabling
• Color-coded LSA/IDC terminations simplify installation and reduce errors
• Integrated grounding wire and terminal for enhanced safety and performance
• RoHS and CE compliant for environmental and safety assurance

Technical details

• Product type: Network patch panel
• Rack size: 19 inch
• Number of ports: 32
• Cabling standard: Cat5e (Category 5e)
• Shielding type: UTP (Unshielded Twisted Pair)
• Mounting type: Rackmount
• Height unit: 1U
• Front connector type: RJ45 Female
• Rear termination type: LSA (Krone) / IDC
• Wiring standard: TIA/EIA 568A/B color coded
• Housing material: Steel
• Color: Black
• Grounding: Integrated grounding wire/terminal
• Cable management: Rear cable management bar included
• Compliance: RoHS, CE
• Application: Ethernet, LAN, Data Networks
• Max data rate: 1000 Mbps (Gigabit Ethernet)
• Operating temperature: -10°C to 60°C
• Insulation resistance: >500 MΩ
• Dielectric strength: 1000V AC RMS, 60Hz, 1 min

Our verdict

An excellent choice for network professionals needing a high-density, reliable Cat5e patch panel. Its 32 ports in 1U, robust steel construction, and included cable management make it a practical and durable solution for any data network.
