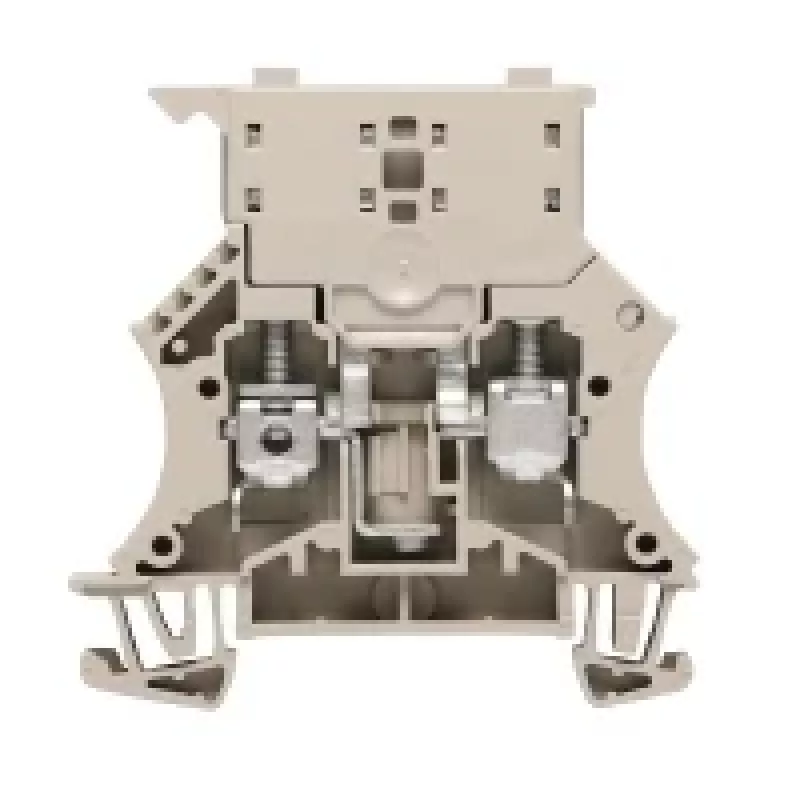

Weidmüller 1011000000 - 7,9 mm - 61 mm - 60 mm

The Weidmüller 1011000000 is a high-quality screw connection terminal block designed for reliable and secure electrical connections. With a compact design and robust construction, it is ideal for industrial control panels and automation systems.

Advantages

Easy and tool-free wiring with screw connection technology. The terminal block offers a rated voltage of 800 V and a rated current of 24 A, ensuring safe and efficient power distribution. Its compact dimensions save space on the DIN rail.

Suitable for

• Industrial control cabinets
• Building automation
• Machine control systems
• Power distribution

Key specifications

• Connection Type: Screw Connection
• Number of Levels: 1
• Number of Connections per Level: 2
• Number of Potentials: 1
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Rated Cross-Section (IEC): 2.5 mm²
• Solid Conductor Cross-Section: 0.5 mm² - 4 mm²
• Fine-Stranded Conductor Cross-Section: 0.5 mm² - 4 mm²
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid (PA 66)
• Color: Dark Beige
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0
• Stripping Length: 10 mm
• Screw Thread: M 2.5
• Tightening Torque: 0.4 Nm - 0.8 Nm
• Dimensions (W x H x D): 7.9 mm x 61 mm x 60 mm

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper tightening torque. Suitable for use in environments with pollution degree 3.
