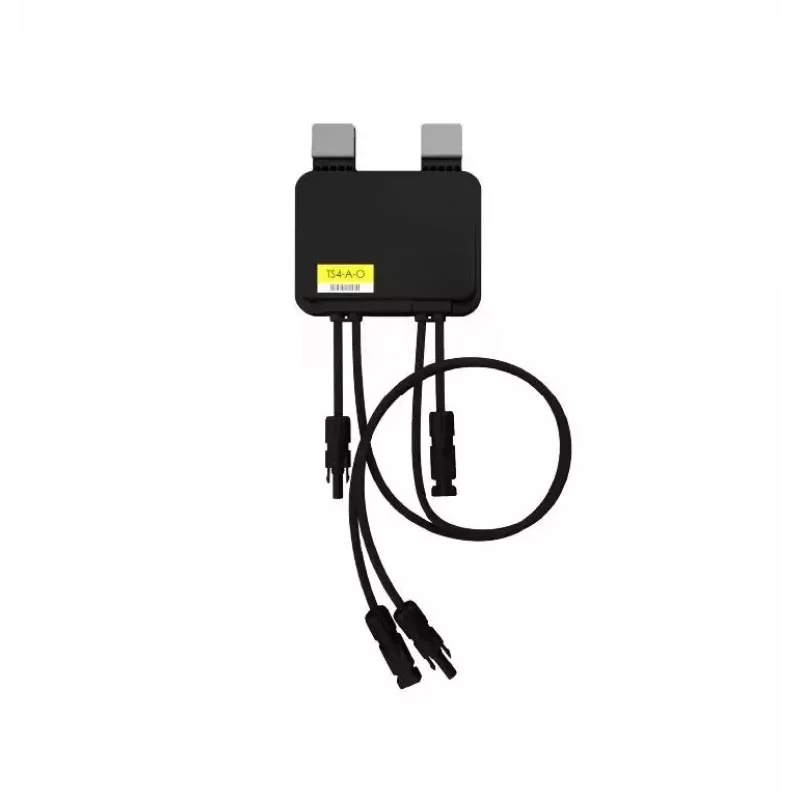

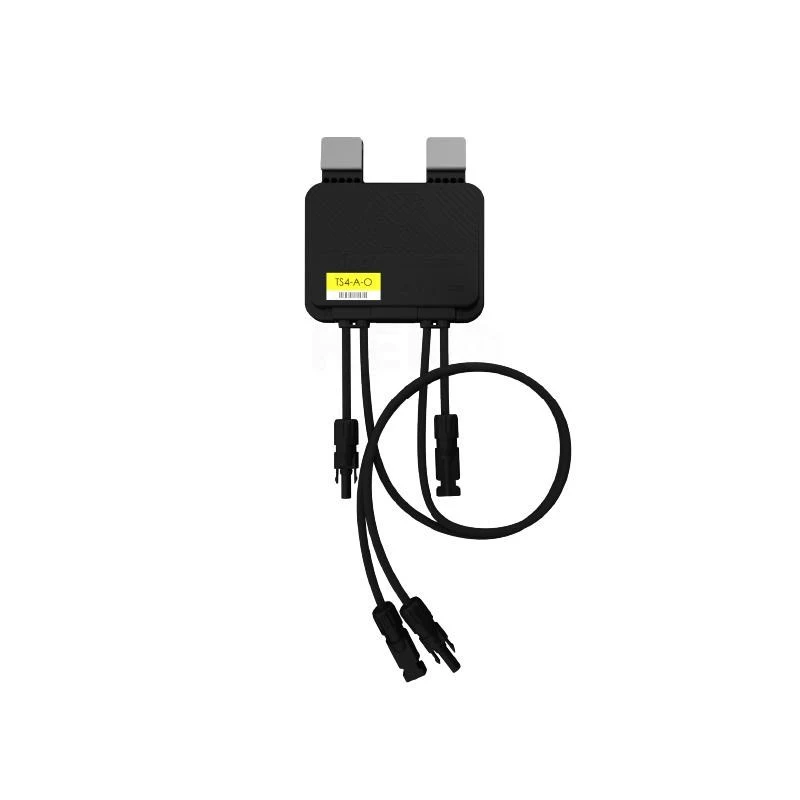

TIGO TS4-A-O_700

With a peak efficiency of 99.5% and support for modules up to 700W, the TIGO TS4-A-O_700 squeezes every watt from your solar array while ensuring NEC-compliant rapid shutdown. This module-level power optimizer is built for installers who demand maximum energy harvest and safety in one compact unit.

Overview

The TIGO TS4-A-O_700 is a module-level power optimizer designed for universal compatibility with solar modules up to 700W, 80V Voc, and 15A Isc. It attaches directly to the module frame, providing optimization, monitoring, and rapid shutdown functionality. The unit communicates via Tigo's RSS (Rapid Shutdown System) using PLC, ensuring seamless integration with Tigo monitoring platforms. Its IP68 enclosure guarantees durability in harsh outdoor environments, and the MC4 connectors simplify installation.

What stands out

• 99.5% peak efficiency maximizes energy production from each module.
• Supports high-power modules up to 700W, future-proofing your installation.
• Integrated rapid shutdown complies with NEC 2017/2020 for enhanced safety.
• IP68-rated enclosure withstands dust, water, and extreme temperatures (-40°C to +70°C).
• Module-level monitoring via Tigo Cloud Connect Advanced (sold separately) for real-time performance insights.
• Bypass functionality allows non-optimized modules or shutdown without affecting the string.

Technical details

• Product Type: Module-Level Power Optimizer
• Max Module Power: 700 W
• Max Module Voltage (Voc): 80 V
• Max Module Current (Isc): 15 A
• Output Voltage Range: 0-80 V (when active)
• Output Current: 15 A
• Communication Protocol: Tigo RSS via PLC
• Connector Type: MC4
• Enclosure Rating: IP68
• Operating Temperature Range: -40°C to +70°C
• Peak Efficiency: 99.5%
• Warranty: 25 Years
• Installation Type: Add-on (mounts to module frame)
• Module Compatibility: Universal (up to specified limits)

Our verdict

The TIGO TS4-A-O_700 is a top-tier choice for solar professionals seeking high efficiency, robust safety, and long-term reliability. Its 25-year warranty and universal compatibility make it a smart investment for any PV system.
