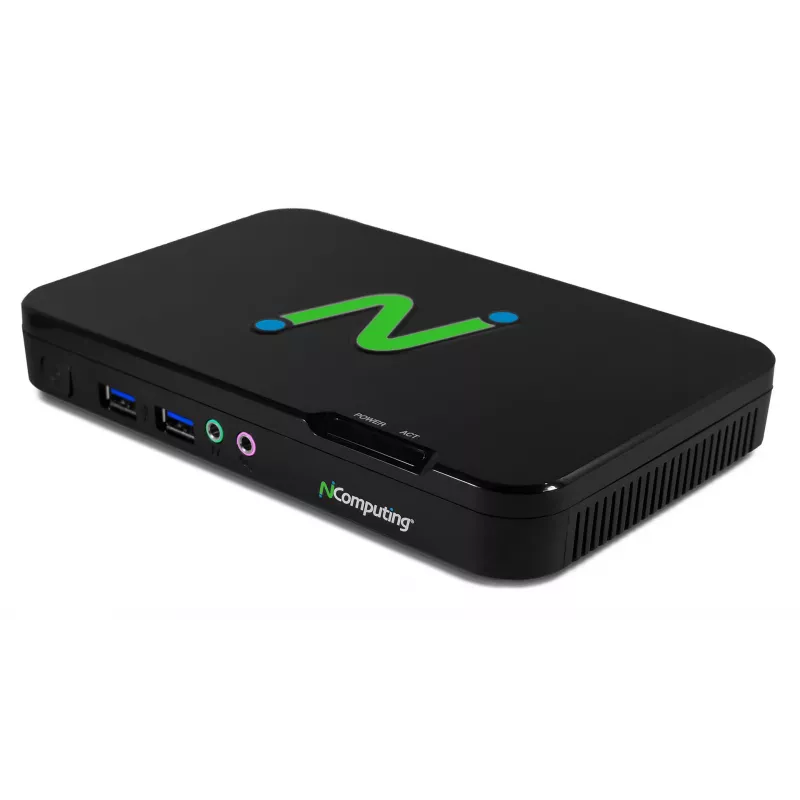

NComputing RX540 Raspberry Pi CM5 Thin Client

The NComputing RX540 is a high-performance thin client powered by the Raspberry Pi CM5 module, designed for virtual desktop environments. It combines the reliability of NComputing hardware with the flexibility of Stratodesk NoTouch OS, making it an ideal choice for education, healthcare, and enterprise deployments.

Advantages

Fanless and compact design ensures silent operation and low power consumption. Supports dual 4K displays via Micro HDMI, providing crisp visuals. Integrated Wi-Fi 5 and Bluetooth 5.0 offer wireless connectivity options. VESA mountable for space-saving installations.

Suitable for

• Virtual desktop infrastructure (VDI) environments
• Education and training labs
• Healthcare and point-of-care terminals
• Call centers and office workstations

Key specifications

• Processor: Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz
• RAM: 4GB LPDDR4-3200 SDRAM
• Storage: 16GB eMMC Flash
• Operating System: Stratodesk NoTouch OS
• Video Output: 2x Micro HDMI (up to 4K @ 60Hz)
• Ethernet: Gigabit Ethernet (RJ-45)
• Wireless: Dual-band 802.11ac Wi-Fi 5, Bluetooth 5.0 BLE
• USB Ports: 2x USB 3.0, 2x USB 2.0
• Audio: 3.5mm Stereo Audio Jack
• Power: USB-C (5V DC, 3A)
• Form Factor: Fanless, Compact Desktop
• Mounting: VESA Mountable (bracket included)
• Security: Kensington Lock Slot
• Additional Storage: MicroSD Card Slot

Recommendations

The NComputing RX540 is a robust and energy-efficient thin client that delivers excellent performance for virtual desktop workloads. Its support for major VDI platforms like Citrix, VMware, and Microsoft RDP ensures broad compatibility.
