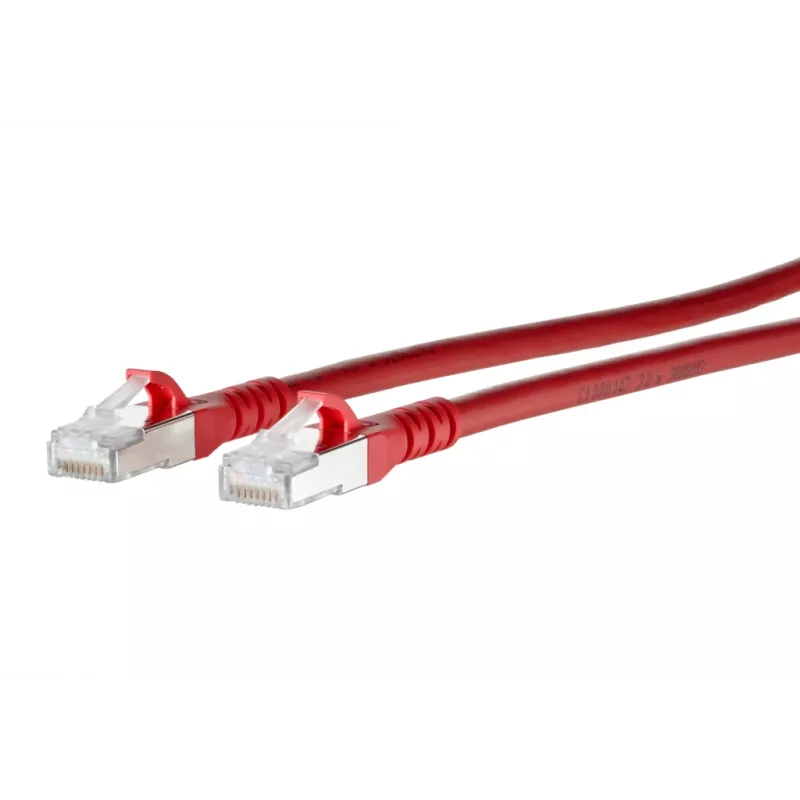

METZ CONNECT 1308451066-E 1m Cat6a S/FTP röd patchkabel

Network bottlenecks and electromagnetic interference can cripple high-speed data transfer in dense server rooms or industrial settings. The METZ CONNECT 1308451066-E 1m Cat6a S/FTP Red Patch Cable eliminates these issues with robust shielded construction and 10 Gigabit performance. Its distinctive red jacket also simplifies port identification and cable management in complex installations.

Who is it for

This patch cable is ideal for network administrators, data center technicians, and system integrators who demand reliable, high-bandwidth connections in environments with high EMI. It suits office networks, industrial automation, and any infrastructure requiring PoE++ power delivery up to 100W.

Main features

• Cat6a performance with 500 MHz bandwidth and 10 Gbps data transfer rate
• S/FTP shielding: overall braid plus foil per pair for maximum EMI protection
• LSZH jacket for low smoke and halogen-free safety in fire-sensitive areas
• Gold-plated RJ45 connectors with snagless boots for durability and secure connections
• Stranded bare copper conductors (AWG 26/7) for flexibility and easy routing
• Supports PoE, PoE+, and PoE++ (Type 4) up to 100W

Specifications

• Length: 1 m
• Colour: Red
• Shielding: S/FTP (S-STP)
• Conductor: Bare copper, AWG 26/7 stranded
• Connector: RJ45 male to RJ45 male, gold-plated contacts
• Jacket: LSZH (Low Smoke Zero Halogen)
• Standards: TIA/EIA-568B.2-10, ISO/IEC 11801, RoHS, CE
• Flammability: IEC 60332-1

Tips

For optimal performance, avoid sharp bends and maintain the minimum bend radius of 4 times the cable diameter. Use cable ties or Velcro straps to organize multiple red cables, and label both ends to streamline troubleshooting. Pair with Cat6a shielded patch panels and keystone jacks to preserve end-to-end shielding continuity.
