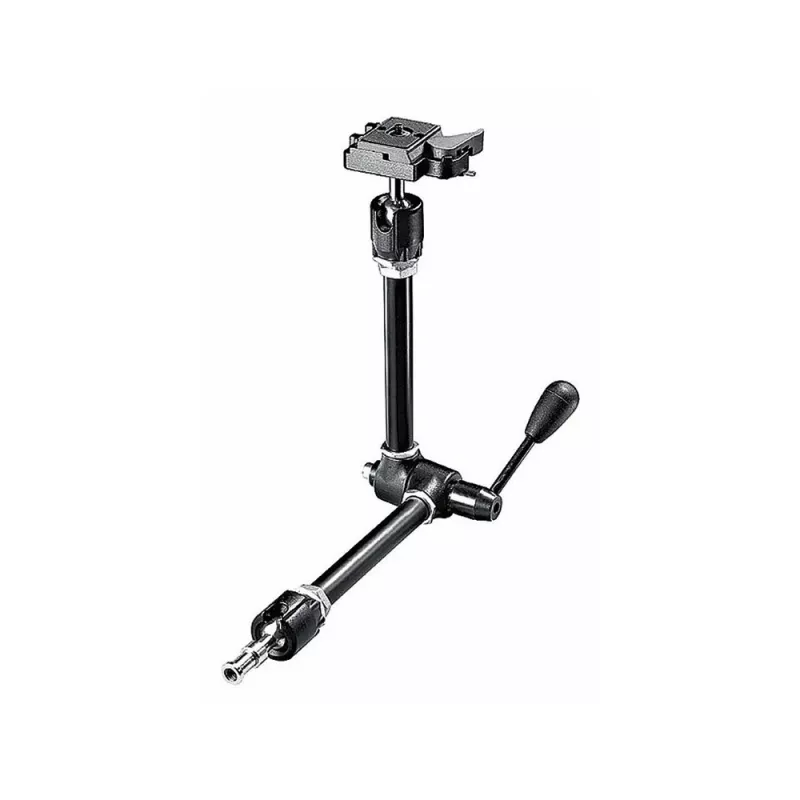

Manfrotto 143RC Magic Arm med snabbfäste

Photographers and videographers often struggle to position cameras, lights, or monitors precisely without bulky, unstable supports. The Manfrotto 143RC Magic Arm with Quick Release solves this by providing a compact yet incredibly strong articulated arm that locks firmly in any position with a single knob. Whether you need to mount a flash off-camera, hold a monitor for a director, or secure a microphone for field recording, this arm delivers rock-solid stability and effortless adjustment.

Who is it for

This Magic Arm is ideal for professional photographers, videographers, and content creators who require flexible mounting solutions. It's perfect for studio work, on-location shoots, and any scenario where you need to attach accessories to tripods, light stands, or other support systems. If you use cameras, LED panels, audio recorders, or small monitors, the 143RC gives you the freedom to position them exactly where you need them.

Main features

• Single locking knob controls all three articulations for quick, secure adjustments.
• Maximum load capacity of 3 kg (6.6 lbs) supports a wide range of accessories.
• Extends up to 53 cm (20.9 inches) for extended reach, yet folds to just 20.5 cm (8.1 inches) for easy transport.
• Both ends feature a 1/4"-20 screw with anti-rotation pin, and include 3/8"-16 adapters for versatile mounting.
• Includes the Manfrotto 143BKT camera bracket, allowing direct attachment of cameras without additional plates.
• Durable aluminum construction ensures long-lasting performance in demanding environments.
• 360° rotation at pivot points enables infinite positioning possibilities.

Specifications

• Brand: Manfrotto
• Model: 143RC
• MPN: 143RC
• EAN: 8024221258103
• Product Type: Articulated Arm / Magic Arm
• Material: Aluminum
• Maximum Load Capacity: 3 kg (6.6 lbs)
• Arm Length (Max Extended): 53 cm (20.9 in)
• Folded Length: Approx. 20.5 cm (8.1 in)
• Attachment Type (Top): 1/4"-20 screw with anti-rotation, includes 3/8"-16 adapter
• Attachment Type (Bottom): 1/4"-20 screw with anti-rotation, includes 3/8"-16 adapter
• Locking Mechanism: Single locking knob for all three joints
• Number of Articulations: 3
• Included Accessories: Camera Bracket (Manfrotto 143BKT)
• Color: Black
• Compatibility: Cameras, monitors, lights, audio recorders, field recorders
• Series: Manfrotto Magic Arm Series
• Rotation: 360° at pivot points

Tips

To ensure maximum stability, always tighten the locking knob firmly after positioning the arm, especially when supporting heavier accessories. When mounting a camera, use the included bracket and align the anti-rotation pin with the corresponding hole on your camera base to prevent twisting. For travel, fold the arm completely and store it in a padded bag to protect the joints.
