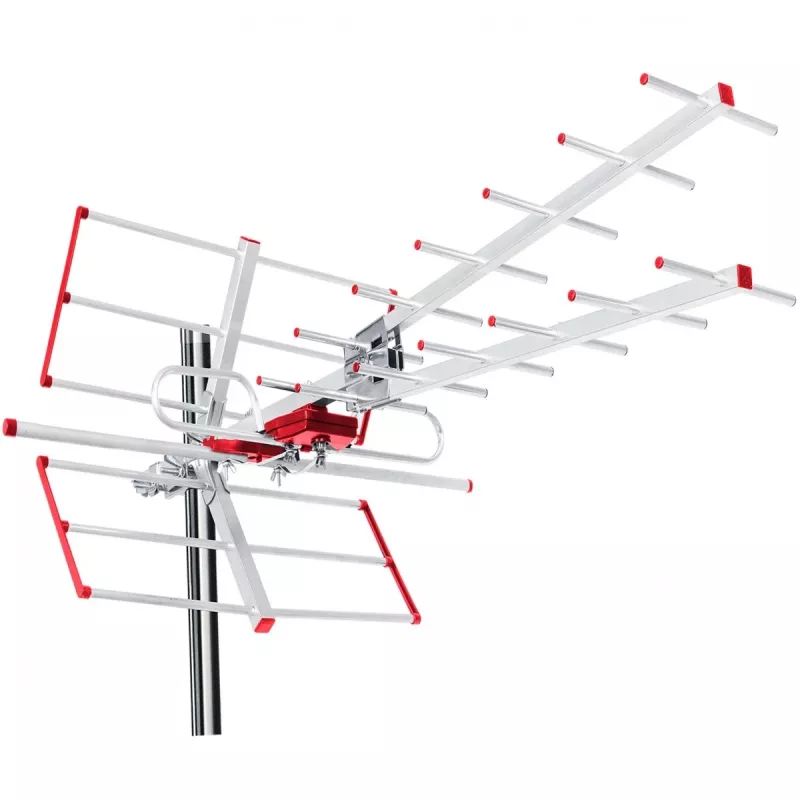

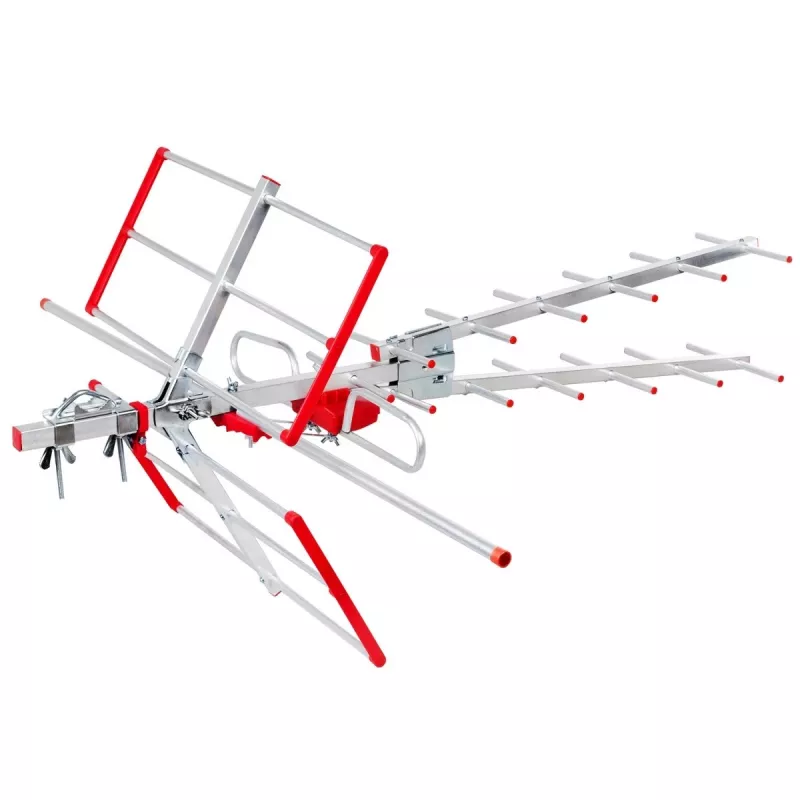

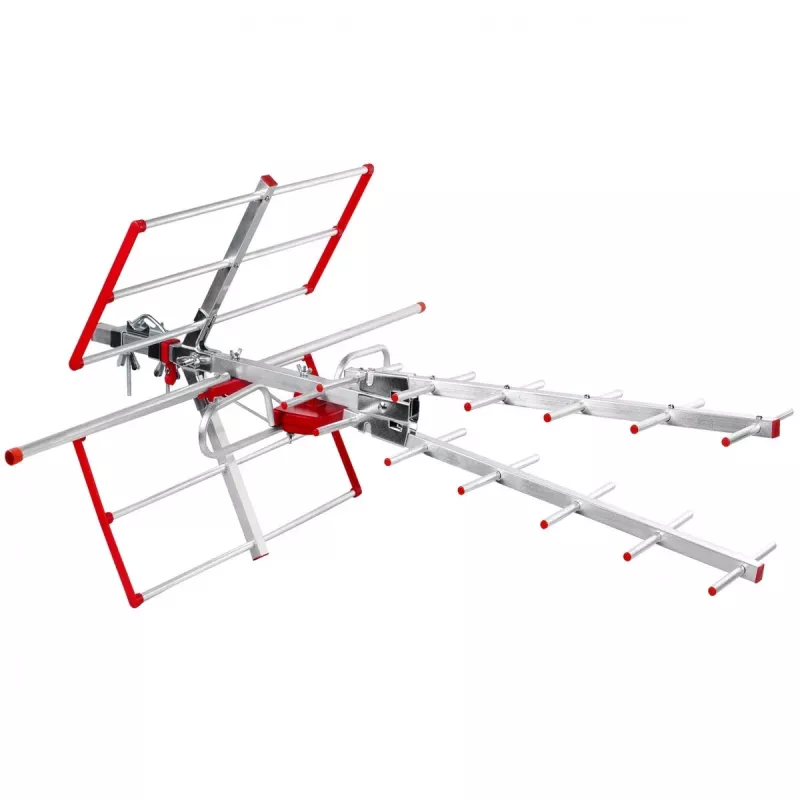

Maclean utomhusantenn DVB-T TV Combo UHF MCTV-855

The Maclean Outdoor Antenna DVB-T TV Combo UHF MCTV-855 is a directional antenna for terrestrial TV reception, enabling MUX 8 reception. It features a built-in LTE filter that cuts unwanted signals above 790 MHz, and an additional dipole for VHF channels.

Key features

• Directional DVB-T/T2 H.265 HEVC antenna for terrestrial TV reception
• Enables reception of the MUX 8 multiplex
• Built-in LTE filter eliminates interference from cellular networks in the 800 MHz band
• Additional dipole allows reception of VHF channels (170-230 MHz)
• For outdoor installation, water and UV resistant
• Ideal in areas with difficult reception conditions
• Foldable, durable construction
• Compatible with Full HD TV standard
• Connector: type F

Specifications

• Brand: Maclean
• Usage: Outside
• Bands: UHF, DAB+, VHF
• UHF frequency: 470-790 MHz
• VHF frequency: 170-230 MHz
• Antenna gain: 12
• Impedance: 75
• Polarization: Linear horizontal
• Balun: Yes
• Amplifier: No
• Color: Red
• Channels: VHF 6-12, UHF 21-69
• Reception front to back: 28 dB
• Beam width: H40 ° / V55 °
• Max. output level: 100 dBV
• Energy gain: VHF: 5-6 dB, UHF: 10-12 dB
