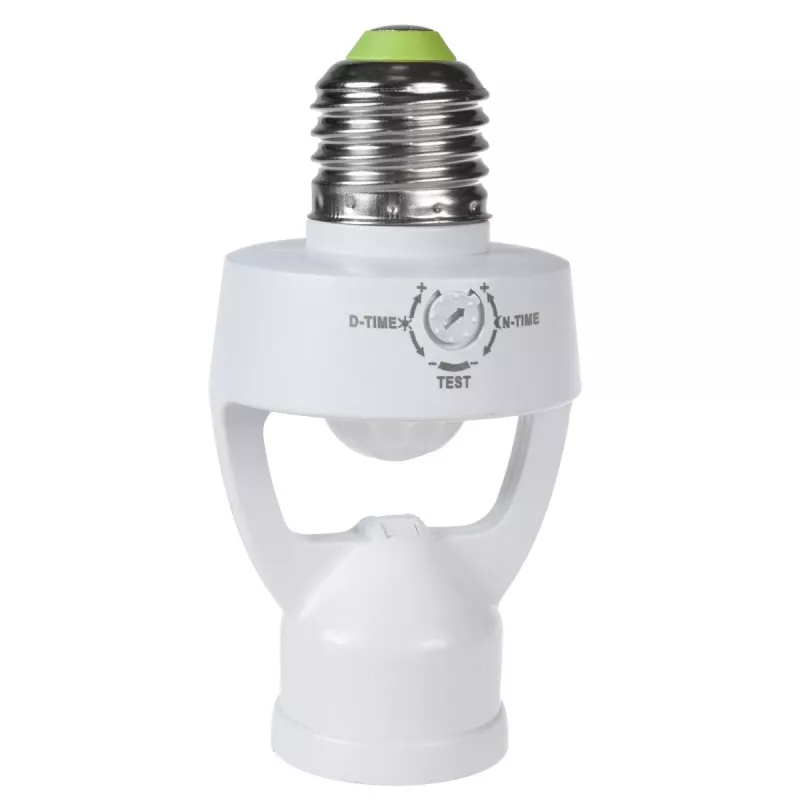

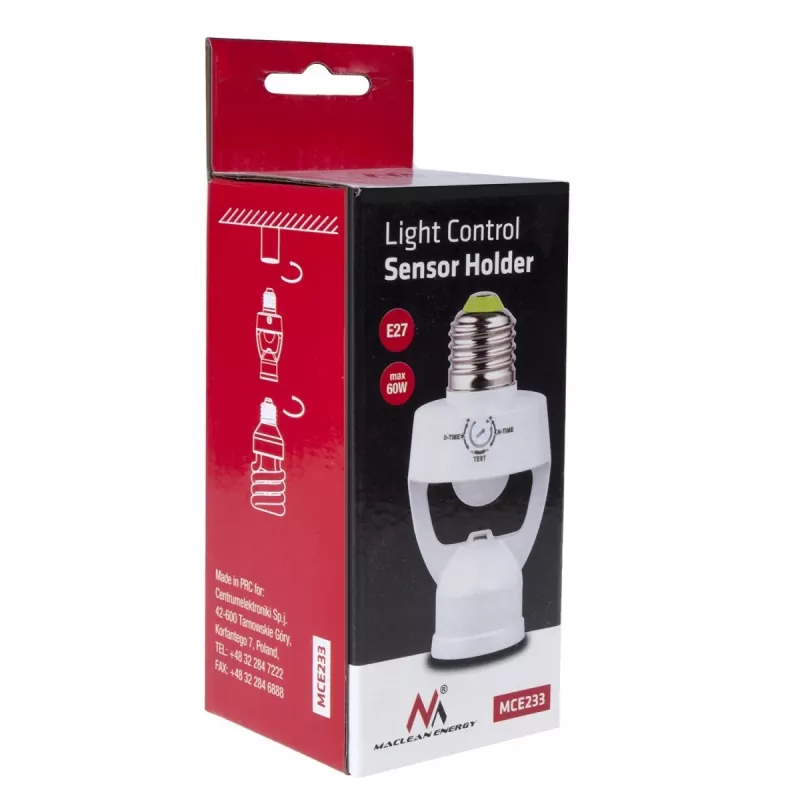

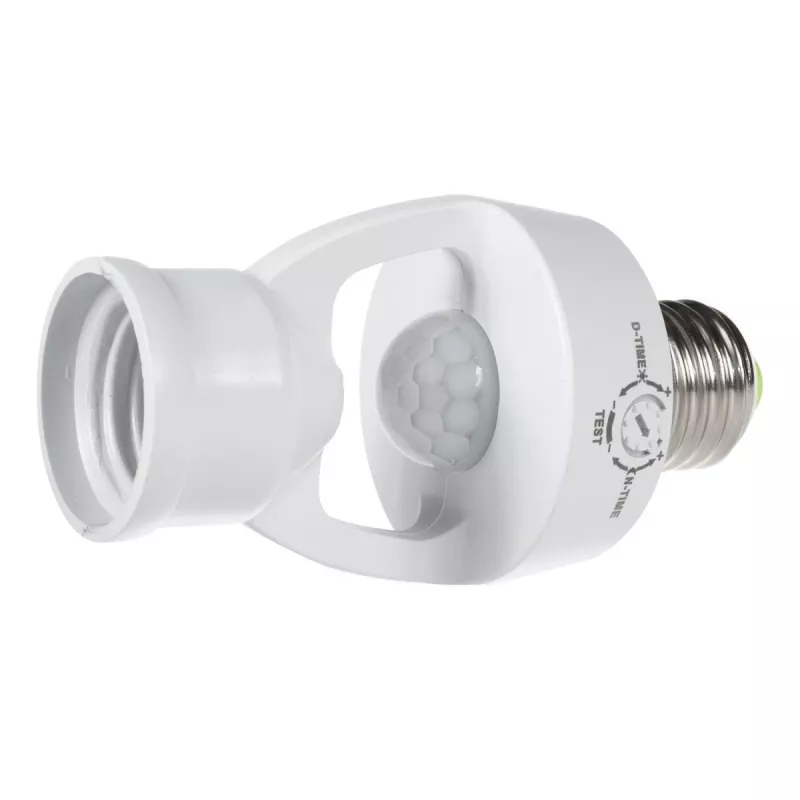

MACLEAN ljusstyrningssensorhållare MCE233

The MACLEAN MCE233 Light Control Sensor Holder is a high-quality PIR motion sensor designed for automatic lighting control in indoor and outdoor areas. It detects movement via passive infrared technology, offering a 180° detection angle and a range of up to 12 meters. Ideal for energy-saving applications, this sensor automatically switches lights on when motion is detected and off after a set time delay.

Advantages

Energy-efficient automatic lighting control; adjustable time delay and light sensitivity; robust IP44 weatherproof design; easy surface mounting on walls.

Suitable for

• Corridors, stairwells, and hallways
• Garages, basements, and storage rooms
• Outdoor areas under eaves or covered patios
• Office and commercial spaces

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Detection Range: Max 12 meters (<24°C)
• Power Supply: 220-240V AC, 50/60Hz
• Max Load (Incandescent): 1200W
• Max Load (LED/Fluorescent): 300W
• Light Sensitivity: 3-2000 LUX (adjustable)
• Time Delay: 10 seconds to 7 minutes (adjustable)
• Installation Height: 1.8 - 2.5 meters
• IP Rating: IP44
• Operating Temperature: -20°C to +40°C
• Power Consumption (Operating): 0.45W
• Power Consumption (Standby): 0.1W
• Mounting Type: Surface-mounted (Wall)
• Colour: White

Recommendations

For optimal performance, install at the recommended height of 1.8-2.5 meters and avoid placing near heat sources or air conditioning vents. Adjust the LUX setting to ensure the sensor only activates in low light conditions.
