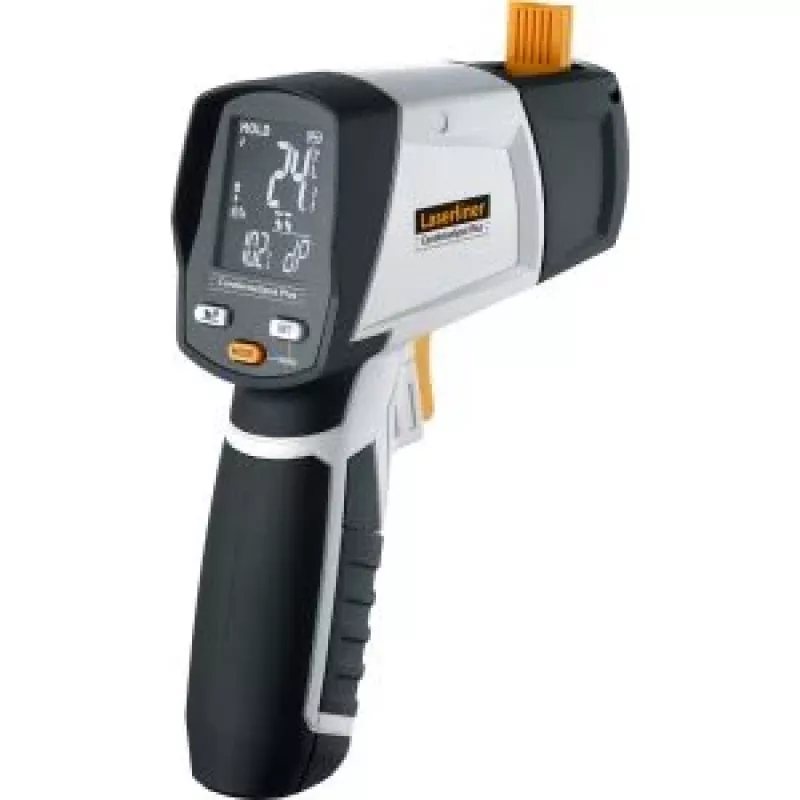

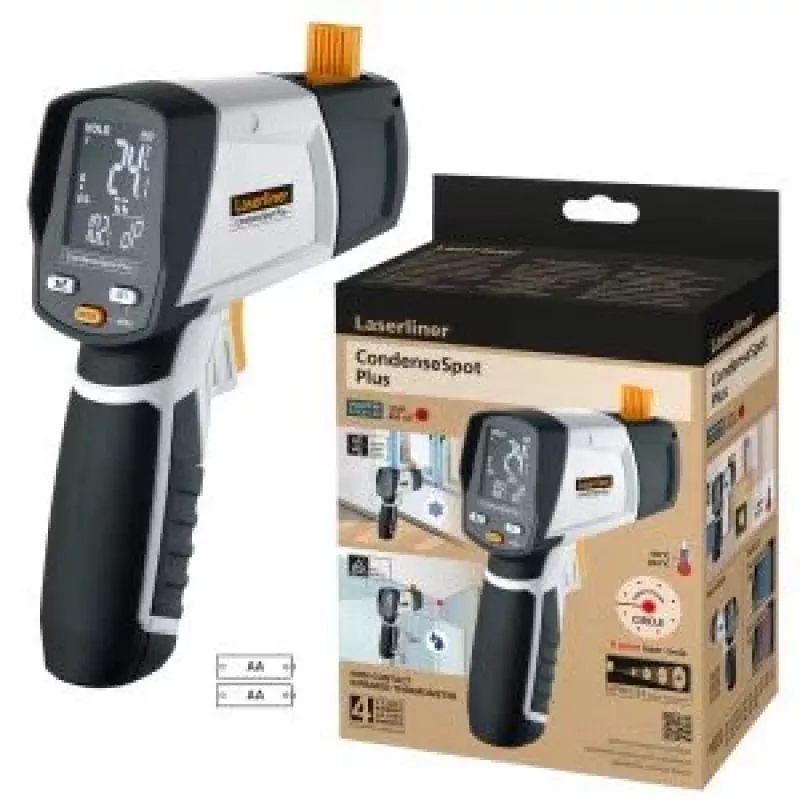

Laserliner CondenseSpot Plus infrarödtermometer 082.046E

The CondenseSpot Plus stands apart from typical infrared thermometers by combining surface temperature measurement with ambient conditions and dew point calculation in a single tool. It uses a dual laser to mark the measurement spot precisely, while the 12:1 optics let you measure smaller targets from a safe distance.

Highlights

• Infrared temperature range: -50°C to 500°C (-58°F to 932°F)
• Dual laser marking for accurate targeting
• Calculates dew point and wet bulb temperature
• Adjustable emissivity from 0.01 to 1.00
• Backlit LCD with min/max/avg/diff and data hold

In daily use

The CondenseSpot Plus is built for HVAC technicians, building inspectors, and maintenance crews who need to assess thermal conditions and moisture risk quickly. The dew point alarm alerts you when condensation is likely, helping prevent mold and structural damage. The surface temperature alarm flags areas outside your set limits, so you can scan large surfaces efficiently.

Full specifications

• Infrared temperature range: -50°C to 500°C (-58°F to 932°F)
• Infrared temperature accuracy: ±1.5°C (0°C to 500°C), ±3°C (-50°C to 0°C)
• Ambient temperature range: 0°C to 50°C (32°F to 122°F)
• Ambient temperature accuracy: ±1°C
• Relative humidity range: 10% to 90% RH
• Relative humidity accuracy: ±3% RH (20-80% RH), ±5% RH (10-20% & 80-90% RH)
• Dew point temperature range: -30°C to 100°C (-22°F to 212°F)
• Wet bulb temperature range: 0°C to 50°C (32°F to 122°F)
• Distance-to-spot ratio (D:S): 12:1
• Emissivity: Adjustable 0.01 to 1.00
• Laser type: Dual laser, Class 2
• Response time: < 500 ms
• Display: Backlit LCD
• Power source: 2 x AAA 1.5V batteries
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• Measurement functions: Min/Max/Avg/Diff, Data Hold
• Alarm functions: Dew point alarm, Surface temperature alarm

Final note

The CondenseSpot Plus is a versatile diagnostic tool for professionals who need more than just surface temperature readings. Its dew point and wet bulb calculations make it particularly valuable for moisture and HVAC assessments.
