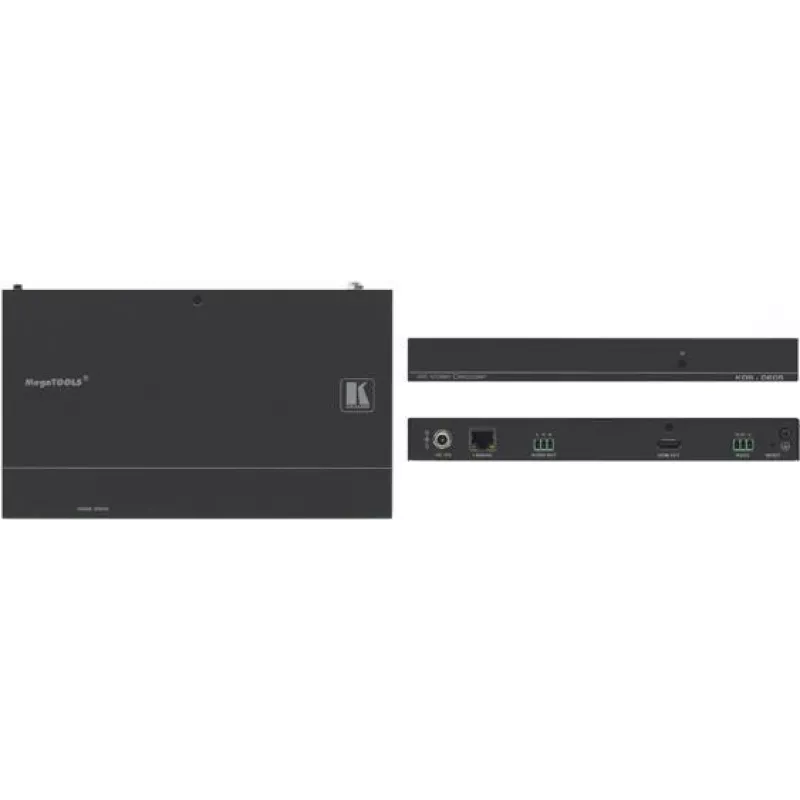

Kramer MegaTOOLS KDS-DEC5 H.264-dekoder

When you need to extend high-definition video over IP with minimal latency, the Kramer MegaTOOLS KDS-DEC5 H.264 Decoder delivers. It pairs with Kramer encoders to receive H.264 streams and output them as clean 1080p60 HDMI video, making it ideal for digital signage, monitoring, and KVM applications.

Who is it for

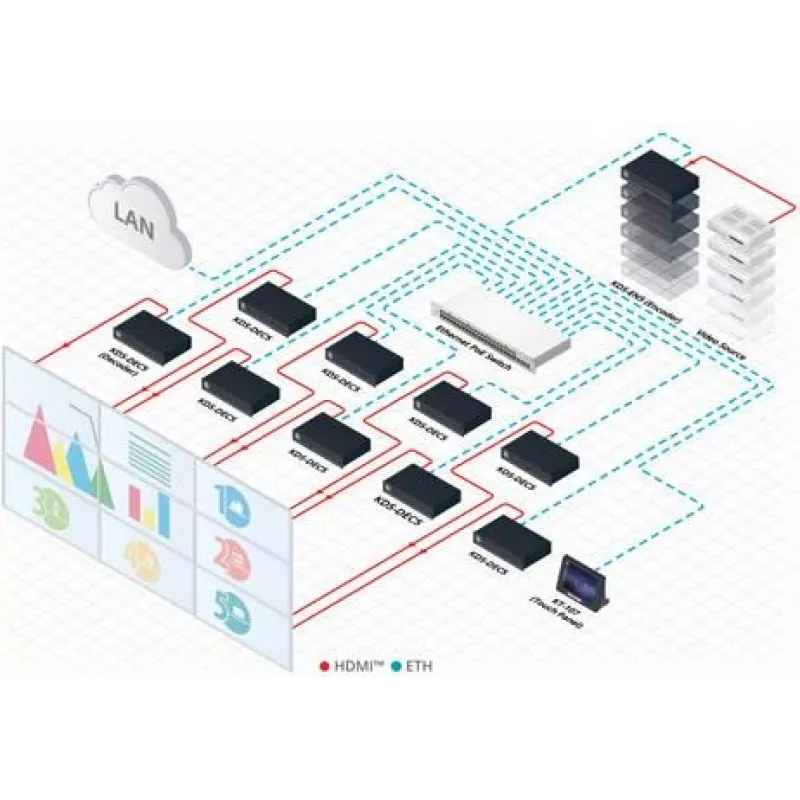

AV integrators, IT administrators, and system designers who require reliable decoding of H.264 video streams over standard Ethernet networks. It's particularly suited for point-to-point or small-scale distribution where low latency and HDCP compliance are essential.

Main features

• Decodes H.264 video and AAC-LC audio streams
• Outputs up to 1080p60 via HDMI
• Supports RTP/RTSP streaming protocols
• End-to-end latency under 40 ms when paired with KDS-EN5 encoder
• Built-in scaler and audio embedding/de-embedding
• KVM over IP support via USB ports for keyboard and mouse
• Management through Web UI, RS-232, or Kramer Network

Specifications

• Video decoding: H.264 (MPEG-4 AVC)
• Audio decoding: AAC-LC
• Max video resolution: 1080p60
• Video output: 1x HDMI
• Audio output: 1x 3.5mm stereo
• Network: 1x RJ-45 (10/100/1000 Mbps Ethernet)
• Control ports: 1x RS-232, 2x USB Type-A
• HDCP support: Yes
• Power supply: 5V DC, 1.5A
• Operating temperature: 0° to +40°C (32° to 104°F)

Tips

For best performance, use a managed Gigabit switch with QoS to prioritize video traffic. Ensure the encoder and decoder are on the same VLAN for lowest latency. The USB ports can be used for KVM control, but check compatibility with your specific keyboard and mouse models.
