Kindermann HDMI-CAT Extender Set 4K60²

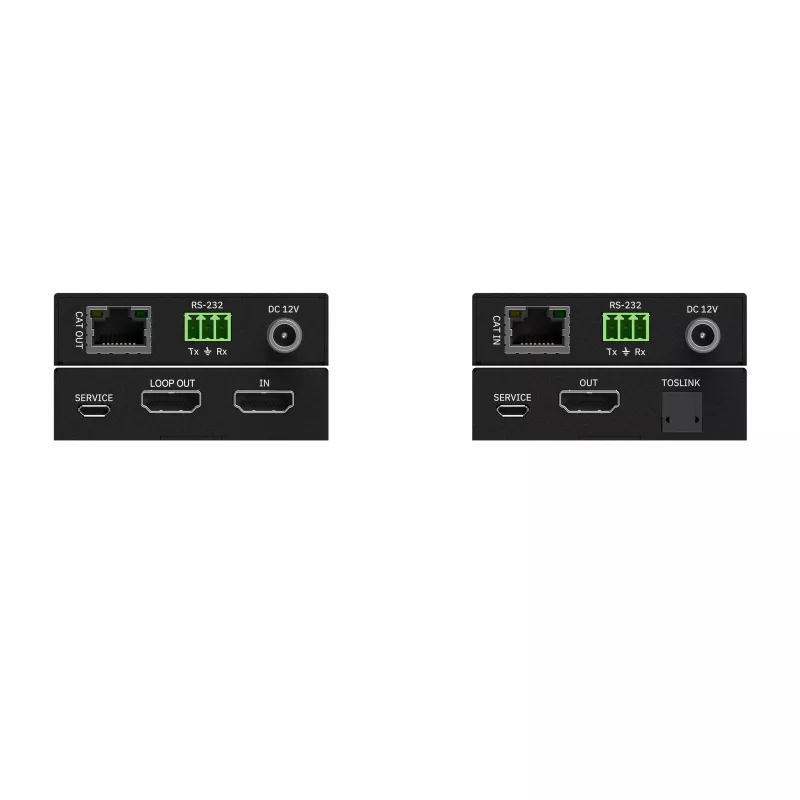

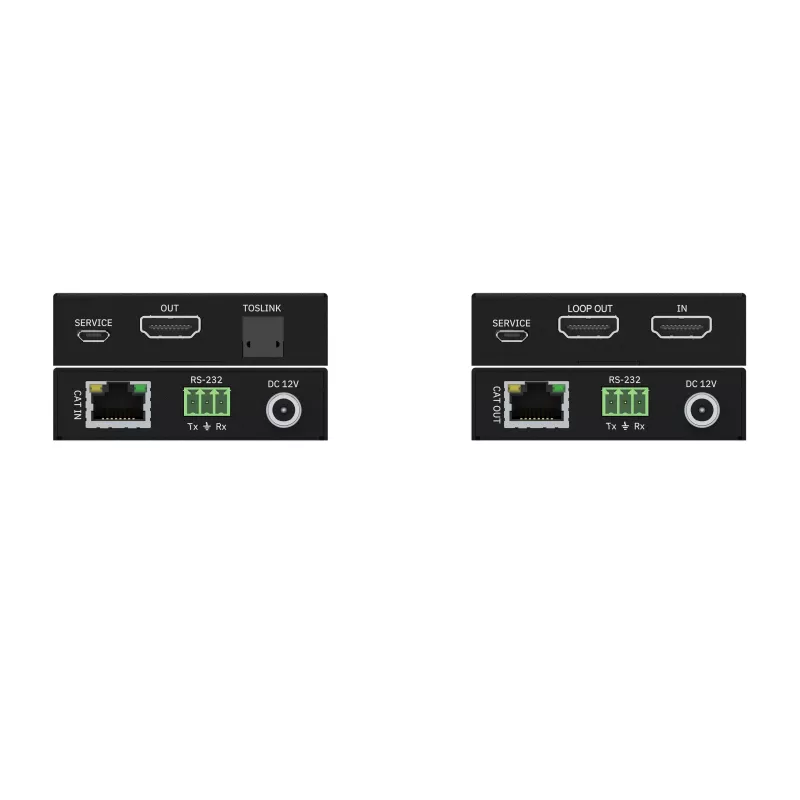

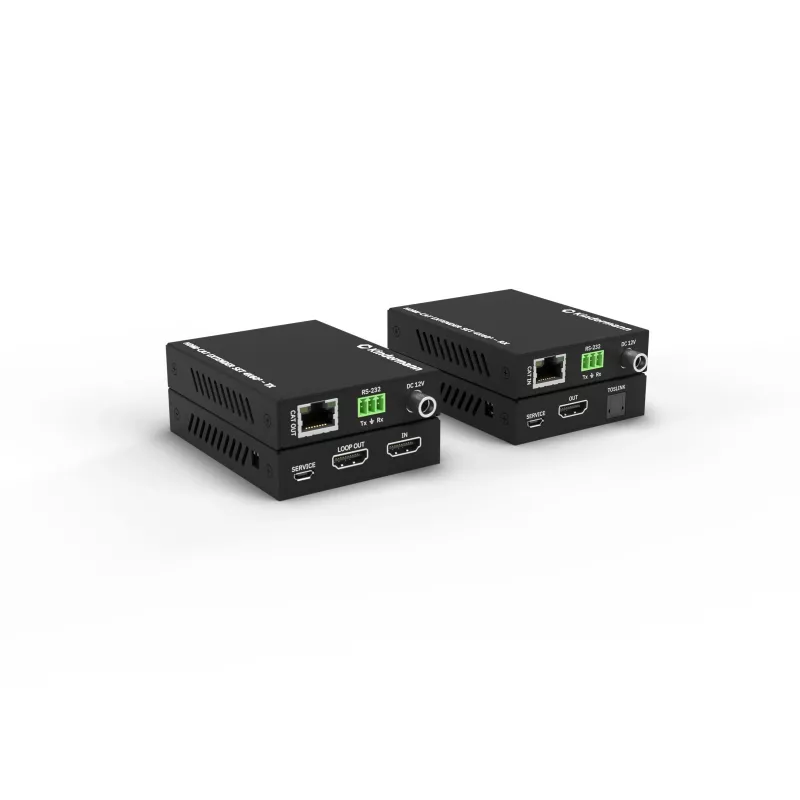

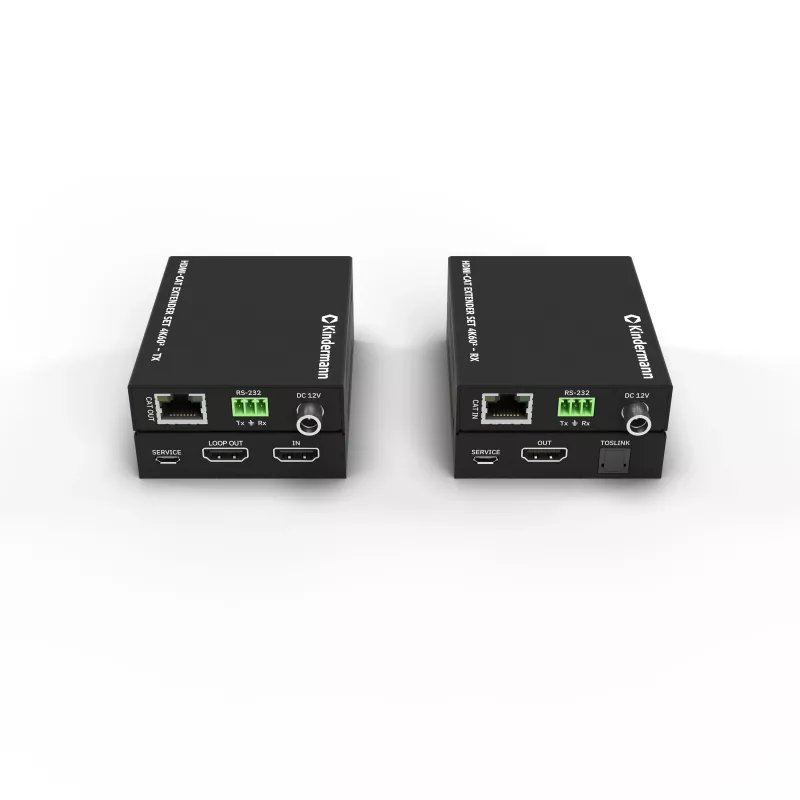

The Kindermann HDMI-CAT Extender Set 4K60² (7488000141) is a professional-grade HDBaseT solution for extending HDMI signals up to 40 meters at 4K@60Hz (4:4:4) or 70 meters at 1080p@60Hz over a single CAT cable. This set includes a transmitter and receiver, supporting HDMI 2.0b, HDCP 2.2/1.4, HDR10, and bi-directional IR and RS-232 pass-through. With Power over Cable (PoC), only one power supply is needed, simplifying installation. The metal housing ensures durability, and near-zero latency makes it ideal for live events, digital signage, and conference rooms.

Advantages

• Extends 4K@60Hz up to 40m and 1080p@60Hz up to 70m over CAT6a/7
• Supports HDR10 and 18 Gbps bandwidth for stunning video quality
• Power over Cable (PoC) reduces cable clutter
• Bi-directional IR and RS-232 pass-through for remote control
• Near-zero latency for real-time applications

Suitable for

• Digital signage and advertising displays
• Conference rooms and meeting spaces
• Live events and presentations
• Home theater installations
• Education and corporate AV systems

Key specifications

• Max Resolution: 4K UHD (3840x2160) @ 60Hz 4:4:4
• HDMI Standard: 2.0b
• HDCP: 2.2 / 1.4
• HDR: HDR10
• Transmission Distance: 40m (4K@60Hz), 70m (1080p@60Hz) over CAT6a/7
• Bandwidth: 18 Gbps
• Audio: LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
• PoC: Yes (from TX or RX)
• IR Pass-through: Bi-directional
• RS-232 Pass-through: Bi-directional
• EDID Management: Automatic
• Housing: Metal
• Power Supply: DC 12V/1A (included)

Recommendations

For optimal performance, use high-quality CAT6a or CAT7 cables. The extender is plug-and-play with automatic EDID management, making setup straightforward. Ideal for professional AV installations requiring reliable long-distance HDMI transmission.
