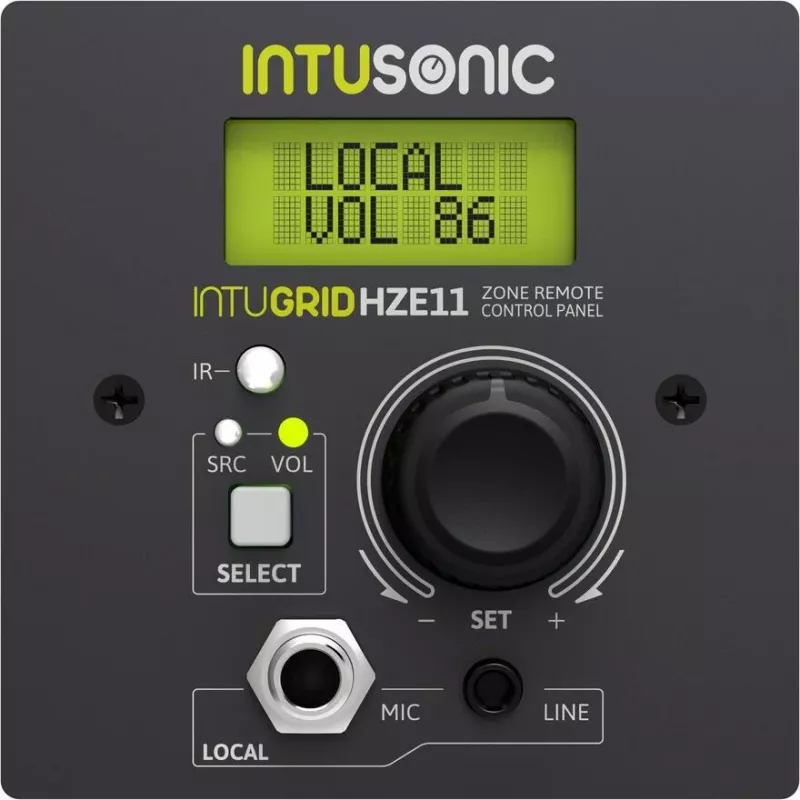

INTUSONIC HZE11 zonfjärrkontrollpanel 12604189

In a multi-zone audio installation, the INTUSONIC HZE11 gives you dedicated control over a single zone from a wall-mounted panel. It connects to the HZM88 Matrix Mixer over a single CAT5e/CAT6 cable, providing volume, source selection, and mute functions with a backlit LCD display.

Key specifications

• Compatible with INTUSONIC HZM88 Matrix Mixer
• Controls: volume, source selection, mute
• Connectivity: 1x RJ45 (CAT5e/CAT6)
• Communication protocol: RS485
• Power: Power over Ethernet (PoE) from HZM88
• Display: backlit LCD
• Mounting: wall-mount, standard 86x86mm flush-mount box
• Max cable length: 300 meters
• Zones controlled: 1 (dedicated)
• Control interface: push buttons, rotary encoder
• Colour: white
• Material: ABS plastic
• Operating temperature: 0°C to 40°C
• Operating humidity: 20% to 80% (non-condensing)

Why choose it

This panel provides a simple, reliable way to control a single zone without needing a computer or mobile device. PoE means no separate power supply is required, and the long cable run support makes it suitable for large installations.

Ideal use cases

• Multi-room audio systems in homes, offices, or commercial spaces
• Background music control in restaurants, bars, or retail stores
• Conference room or classroom audio management

Good to know

The HZE11 is designed to work exclusively with the INTUSONIC HZM88 Matrix Mixer. It uses a standard 86x86mm flush-mount box, making it easy to install in existing wall openings.
