InLine 76660T gränssnittskort/adapter intern M.2, mSATA

Multifunctional PCIe cardfor expanding the internal memory with M.2 NVMe, M.2 SATA and mSATA
PCIe 3.0 x16 interfacefor maximum compatibility and speed
M.2 Key Bsupports both SATAand NVMe SSDin SATA mode (up to 6 Gb/s)
M.2 Key Msupports NVMe SSDs in PCIe modewith up to 4 Gb/s
mSATA connection for additional storage space(SATA cable required)
Onboard LED indicatorsto display the operating status of all interfaces

The InLine® PCI Express cardenables the simultaneous use of three different SSD typeson a single PCIe card. With one M.2 NVMe Key M slot, one M.2 SATA/NVMe Key B slot and one mSATA slot, it offers a versatile storage solution for systems that require high performance and maximum flexibility.
The M.2 Key B Slotsupports M.2 SATA SSDs and NVMe SSDs in SATA mode, while the M.2 Key M slotis intended exclusively for NVMe SSDs in PCIe mode. The mSATA slotis connected to the mainboard via a SATA cableand thus enables additional storage space.
The NVMe SSD is powered directly via the PCIe bus (3.3 V), while M.2 SATA and mSATA SSDs are connected to the mainboard via separate SATA connectors. LED indicatorsfor all interfaces make it easier to monitor operating activity.
Technical data:

Bus type & PCIe: PCIe 3.0 x16 (uses one PCIe x16 slot; ultra-fast PCIe v3.0 lanes, which enable the operation of NVMe and SATA)
Connection – interfaces:
1 x M.2 slot (Key B) – for NVMe (SATA mode) and M.2 SATA SSDs
1 x M.2 slot (Key M) – for NVMe SSDs in PCIe mode
1 x mSATA slot – for mSATA modules
2 x SATA 6 Gb/s 7-pin connectors – for connecting mSATA and M.2 SATA modules to the motherboard

Dimensions: 169 mm x 68 mm (PCIe board)
Compatible modules:
M.2 SSDs (Key B, Key M or B+M) in the sizes 2230, 2242, 2260, 2280
mSATA SSDs (half or full size)

Data rate:
M.2 NVMe (Key M and Key B+M): up to 4 Gb/s
M.2 SATA (Key B) & mSATA: up to 6 Gb/s (via SATA)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Automatic detection of the lane configuration at boot
Onboard LED indicators (3x status display for each interface)
NVMe SSDs (Key M) receive their power supply directly via the PCIe bus (3.3 V)
M.2 SATA and mSATA modules require a SATA data connection to the mainboard
No additional driver required

System requirements:Hardware:

PC with one free PCIe 3.0 x16 slot
Motherboard with support for PCIe NVMe & SATA

Operating system support:

Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: from kernel 2.6.30

Scope of delivery:

1 x InLine® PCI Express card x16 to 2x M.2, 1x mSATA
1 x low-profile slot bracket
1 x SATA cable
1 x hand screwdriver
4 x screws
2 x heat conduction pads
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

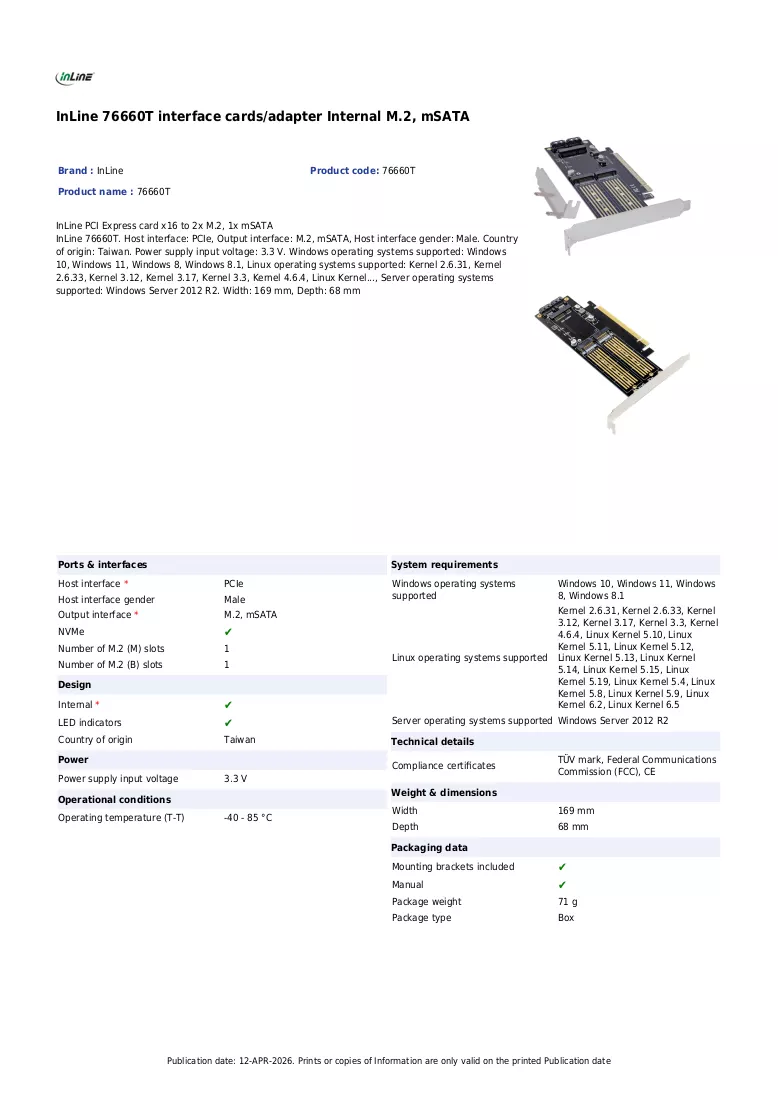

InLine 76660T. Host interface: PCIe, Output interface: M.2, mSATA, Host interface gender: Male. Country of origin: Taiwan. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel..., Server operating systems supported: Windows Server 2012 R2. Width: 169 mm, Depth: 68 mm

How to use

Install the card into an available PCIe 3.0 x16 slot on the motherboard. Mount compatible M.2 or mSATA modules into their respective slots and secure them with screws and heat pads if provided. Connect the included SATA cable from the card’s SATA connector(s) to the motherboard for M.2 SATA and mSATA modules. After assembly, boot the system; the card detects lane configuration automatically and onboard LEDs indicate interface status. No additional driver installation is required for supported operating systems.

Recommendations

Ensure the motherboard BIOS supports NVMe and SATA over PCIe and confirm there is physical space for the card and cabling. Use the supplied low-profile bracket if installing in small-form-factor cases. For optimal thermal behaviour, apply the provided heat conduction pads where necessary and maintain adequate airflow around installed SSDs.
