HyCell LCD-batteritestare

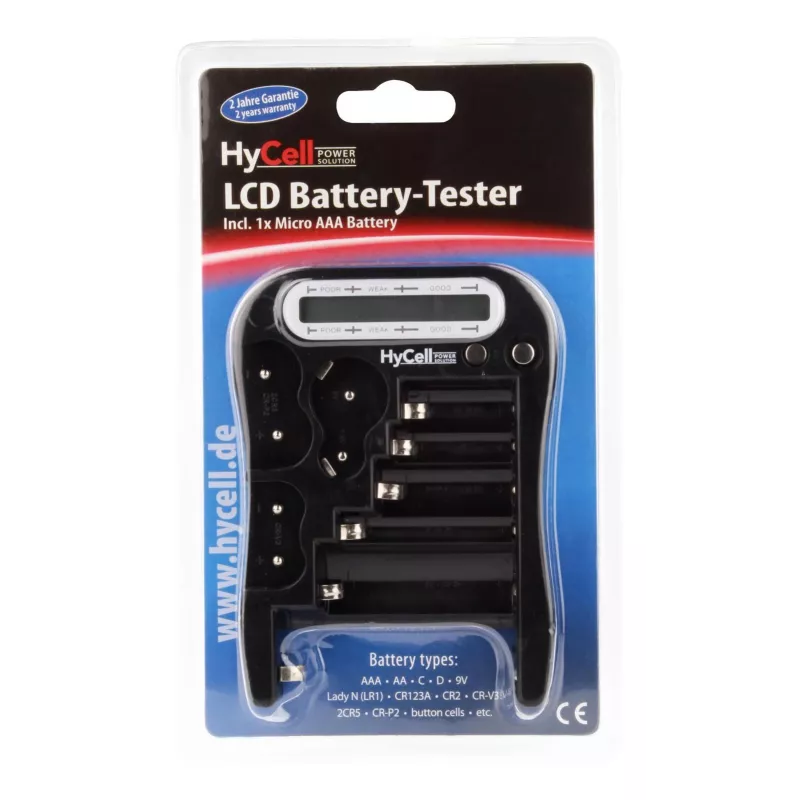

The HyCell LCD Battery Tester is a versatile, handheld device designed for quick and accurate voltage testing of a wide range of household and specialty batteries. Featuring a clear segmented LCD display, it provides an instant graphical indication of battery status, helping you identify which batteries are still usable and which need replacement. This tester is self-powered by the battery being tested, eliminating the need for internal batteries or external power sources.

Advantages

Easy to use with a simple sliding mechanism for different battery sizes. The LCD bar graph clearly shows 'Full', 'Low', and 'Replace' zones, making it easy to assess battery health at a glance. Compact and pocket-sized, it is perfect for home, office, or on-the-go use. Supports multiple battery chemistries including alkaline, zinc-carbon, NiMH, lithium, and silver oxide.

Suitable for

• Testing AA, AAA, C, D, N, and button cell batteries (1.5V)
• Testing CR123A, CR2, CR-V3, BR-V3, CR-P2, 2CR5 batteries (3V)
• Testing 9V E-Block (PP3) batteries
• Household battery management and recycling preparation

Key specifications

• Display: LCD segmented
• Supported voltages: 1.5V, 3V, 9V
• Battery types: AA, AAA, C, D, N, button cells, CR123A, CR2, CR-V3, BR-V3, CR-P2, 2CR5, 9V E-Block
• Chemistry: Alkaline, Zinc-Carbon, NiMH, Lithium, Silver Oxide
• Measurement: Voltage under light load with graphical bar display
• Power: Self-powered by test battery
• Housing: ABS plastic, black with grey accents
• Dimensions: Handheld, pocket-sized

Recommendations

For best results, ensure battery contacts are clean and the battery is at room temperature. This tester is not suitable for vehicle batteries or high-voltage systems.
