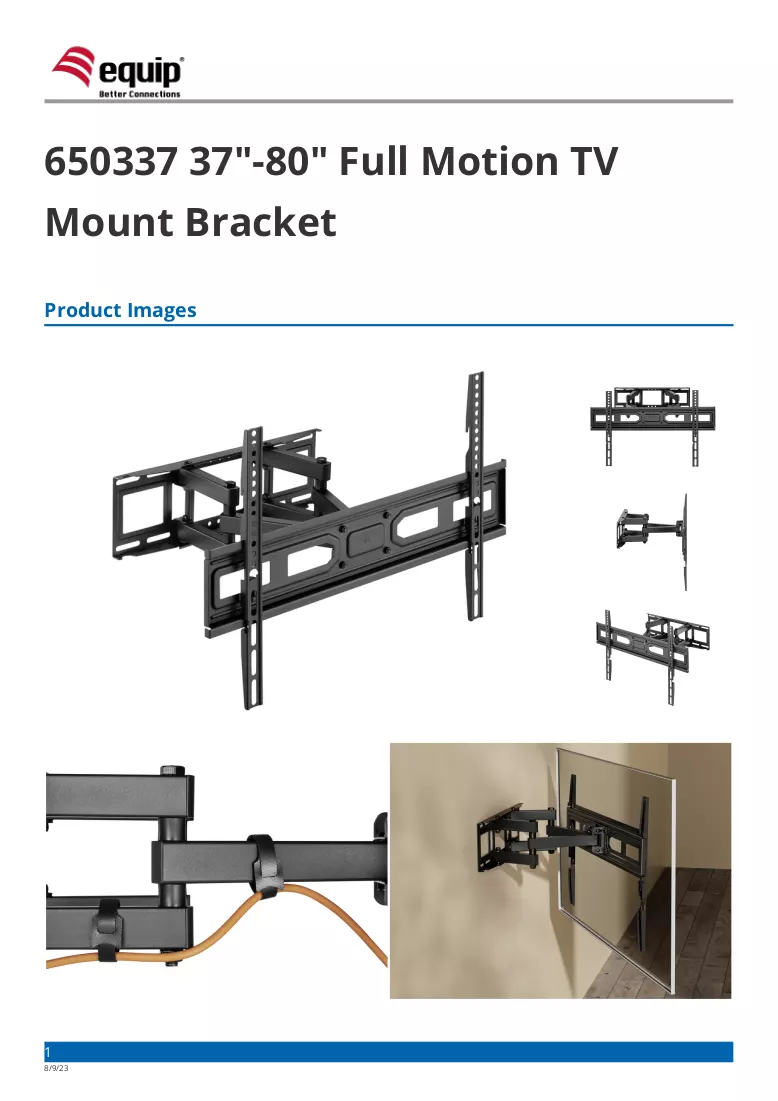

Equip 37 inch-80 inch fullrörlig TV-väggfäste

The Equip Full Motion TV Mount Bracket supports flat panel TVs from 37" to 80" and secures screens up to 40 kg. Designed for reliable installation on various wall materials such as brick, concrete and wood, the mount provides full-motion adjustment with a tilt range of -15° to 3° and swivel range of -60° to 60°. The bracket is compatible with VESA patterns from 100 x 100 mm to 600 x 400 mm and can be set at distances from the wall between 6.7 cm and 35.5 cm. Its black finish fits most interiors.

Advantages

The full-motion mechanism allows flexible positioning and easy leveling for optimal viewing from different seats. Wide VESA compatibility and support for screens up to 80" make the mount suitable for a large range of TVs. The product is compact yet sturdy, with a maximum load capacity of 40 kg and a durable black finish. Installation is aided by a graphic guide included in the package.

Suitable for

• Wall-mounting LCD/LED TVs from 37" to 80"
• Rooms requiring adjustable viewing angles (living rooms, bedrooms, meeting rooms)
• Walls of brick, concrete or wood
• Displays with VESA 100 x 100 mm up to 600 x 400 mm

Key specifications

• Brand: EQUIP
• Model / MPN: 650337
• EAN: 4015867230916
• Supported screen sizes: 37"–80"
• Maximum weight capacity: 40 kg
• Product weight: 3.6 kg
• VESA compatibility: 100 x 100 mm to 600 x 400 mm
• Tilt range: -15° to 3°
• Swivel range: -60° to 60°
• Mounting depth from wall: 6.7 cm to 35.5 cm
• Colour: Black

How to use

Choose a suitable mounting location on a brick, concrete or wooden wall and verify that the wall and fixings can support the TV weight. Use the graphic guide included in the package to mark drilling points and attach the bracket securely to the wall. Fix the TV to the mount following the VESA pattern that matches your display, then adjust tilt and swivel to achieve the preferred viewing angle. Ensure all fasteners are tightened and check stability before leaving the installation unattended.

Recommendations

For safety and optimal performance, use appropriate wall anchors for the wall type, follow the included installation guide, and do not exceed the 40 kg maximum load. Periodically check fasteners and wall fixings for signs of loosening.
