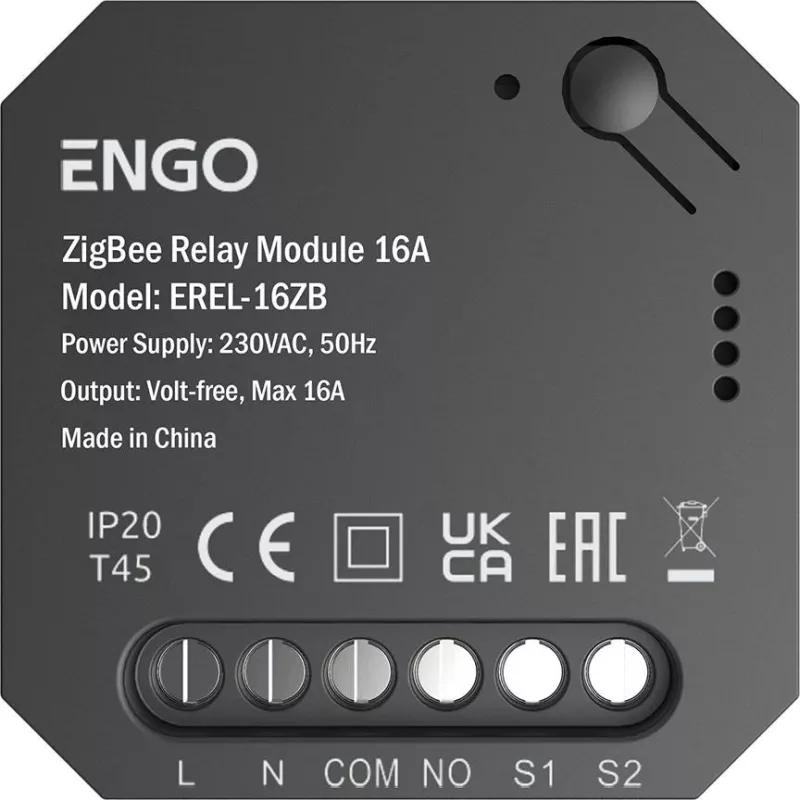

ENGO Controls EREL-16ZB smart relä ZigBee 16A

The ENGO Controls EREL-16ZB is a smart relay designed for the ENGO Smart System, enabling remote control and automation of electrical loads up to 16A. With ZigBee 3.0 connectivity, it integrates seamlessly into your smart home network, allowing you to switch devices on/off via the ENGO Smart App, schedules, or scenes.

Advantages

Easy flush-mount installation in standard Ø60mm boxes, potential-free relay (NO/NC) for versatile switching, low standby power consumption (<1W), and compatibility with Amazon Alexa and Google Assistant for voice control.

Suitable for

• Smart home automation systems
• Remote switching of lighting, appliances, and other electrical devices
• Integration with ENGO Smart System and ZigBee gateways

Key specifications

• Connectivity: ZigBee 3.0 (2.4 GHz)
• Max load: 16 A / 3680 W
• Power supply: 230V AC, 50Hz
• Output: Potential-free relay (NO/NC), 1 channel
• Installation: Flush-mounted (Ø60mm box)
• Operating temperature: 0°C to 40°C
• Protection rating: IP20
• Wireless range: Up to 30 m indoors
• Standby power: <1 W
• Housing: Flame-retardant plastic
• Certifications: CE

Recommendations

Requires a ZigBee coordinator/gateway (e.g., ENGO Smart Gateway) and the ENGO Smart App for full functionality. Compatible with Amazon Alexa and Google Assistant for voice control.
