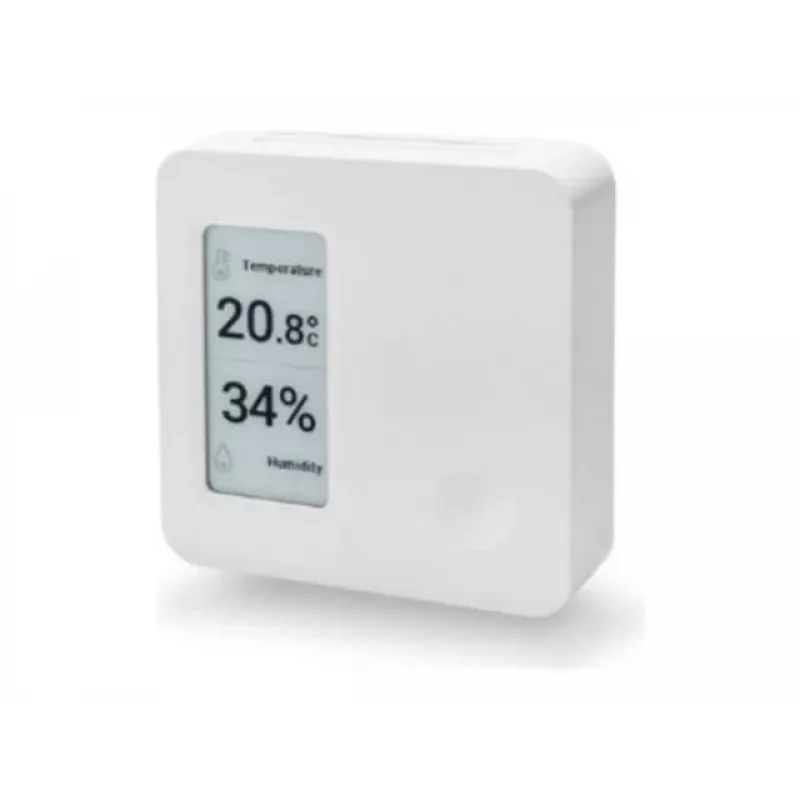

Elsys ERS Display CO2 Lite LoRa

Monitor indoor air quality with laboratory-grade precision using the ELSYS ERS Display CO2 Lite, featuring an NDIR CO2 sensor accurate to ±30 ppm ±3% of reading. This LoRaWAN-enabled device tracks carbon dioxide, temperature, and humidity, displaying real-time values on a crisp e-ink screen for effortless readability.

Overview

The ERS Display CO2 Lite is engineered for continuous environmental monitoring in offices, schools, healthcare facilities, and smart buildings. Its non-dispersive infrared (NDIR) sensor delivers reliable CO2 measurements from 400 to 5000 ppm, while integrated temperature and humidity sensors provide complete climate data. The e-ink display offers high contrast and low power consumption, ensuring visibility even in bright conditions.

What stands out

• High-accuracy NDIR CO2 sensor with ±30 ppm ±3% tolerance
• Ultra-low power design: up to 10 years battery life on two AA lithium cells
• LoRaWAN Class A connectivity for long-range, low-power data transmission
• E-ink display shows CO2, temperature, humidity, and battery level at a glance
• NFC and downlink configuration for easy setup and adjustment
• IP20-rated ABS enclosure suitable for indoor wall mounting

Technical details

• CO2 measurement range: 400–5000 ppm
• Temperature range: 0 to 40 °C, accuracy ±0.5 °C
• Humidity range: 0 to 85 %RH (non-condensing), accuracy ±2 %RH
• Wireless protocol: LoRaWAN Class A (EU868, US915, AS923, AU915, KR920, IN865)
• Display: E-ink, parameters include CO2, temperature, humidity, battery level
• Power: 2 x AA 3.6V lithium batteries (ER14505)
• Battery life: up to 10 years (configurable reporting interval)
• Enclosure: ABS plastic, IP20
• Mounting: wall mount with screws or adhesive
• Operating temperature: 0 to 40 °C
• Data transmission interval: configurable (e.g., 5 min to 120 min)

Our verdict

A robust, maintenance-free air quality sensor that combines scientific accuracy with a decade of battery life—ideal for large-scale indoor monitoring deployments.
