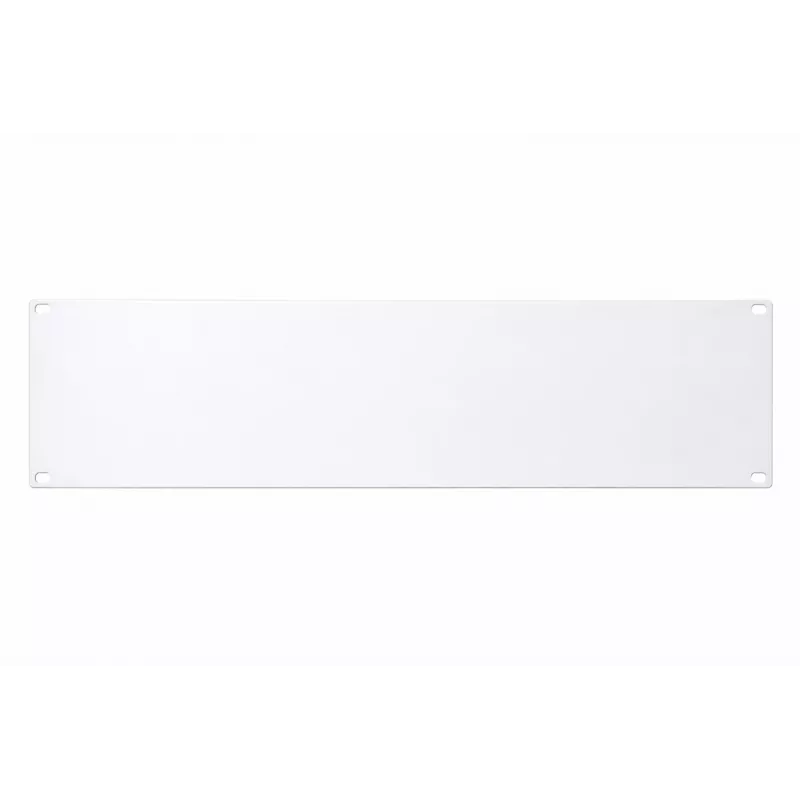

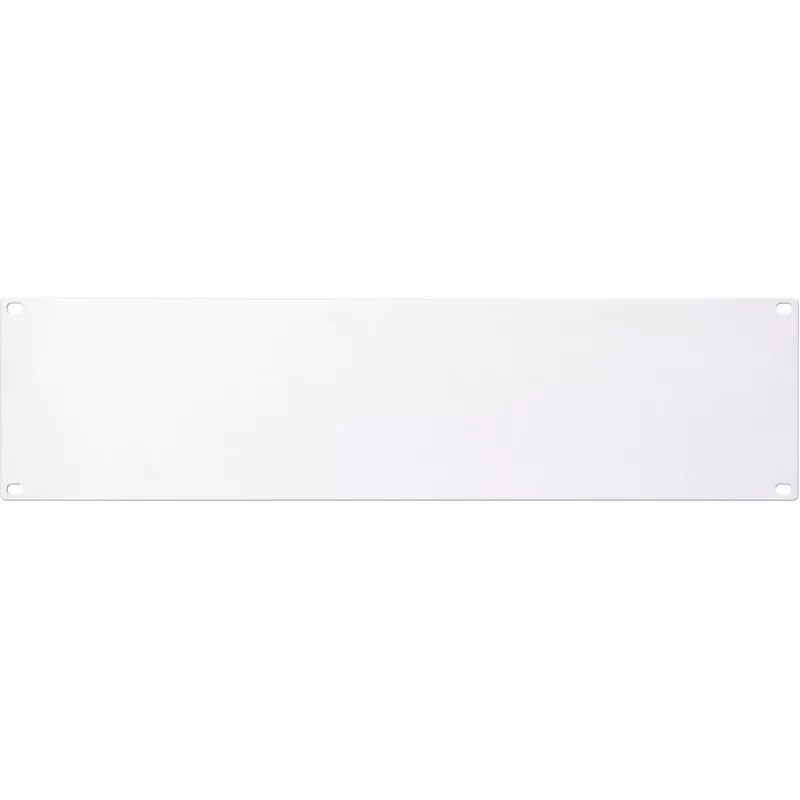

DSIT 19 inch rack-blindpanel 3U vit DS-Blind3-W

Keep your rack looking sharp and running cool with the DSIT DS-Blind3-W, a 3U blanking panel that fills empty 19-inch spaces with a clean white finish. Unlike flimsy plastic covers, this steel panel stands up to daily use while blocking airflow bypass—so your cooling goes where it's needed, not out the front. It's the simple, effective way to maintain proper airflow, reduce dust, and give your installation a professional look.

Highlights

• 3U height covers a 133.35 mm opening in standard 19-inch racks
• White powder-coated steel blends with most rack interiors
• Improves airflow management by preventing hot air recirculation
• Protects equipment from dust and accidental contact
• Easy screw-in installation using standard cage nuts and screws (not included)

In daily use

Install the DS-Blind3-W in minutes to close off unused rack units. The panel's 15 mm depth sits flush with the front rails, leaving plenty of room for cable management behind. The powder-coated surface resists scratches and fingerprints, so it stays looking new even in high-traffic data centers or office network closets. Whether you're building out a new server cabinet or tidying an existing one, this blanking panel helps you achieve a neat, efficient setup.

Full specifications

• Product type: Rack blanking panel
• Rack size: 19 inch
• Rack units: 3U
• Colour: White
• Material: Steel
• Finish: Powder-coated
• Mounting standard: EIA-310-D
• Mounting position: Front
• Width: 482.6 mm
• Height: 133.35 mm
• Depth: 15 mm
• Certifications: RoHS
• Operating temperature: -10°C to 60°C
• Compatibility: Standard 19" server racks, network cabinets, wall mounts
• Installation: Screw-in (requires cage nuts and screws, not included)

Final note

The DSIT DS-Blind3-W is a dependable choice for anyone serious about rack organization and airflow. Its sturdy steel build and clean white finish make it a practical addition to any 19-inch enclosure.
