Dockningsstation LogiLink UA0373

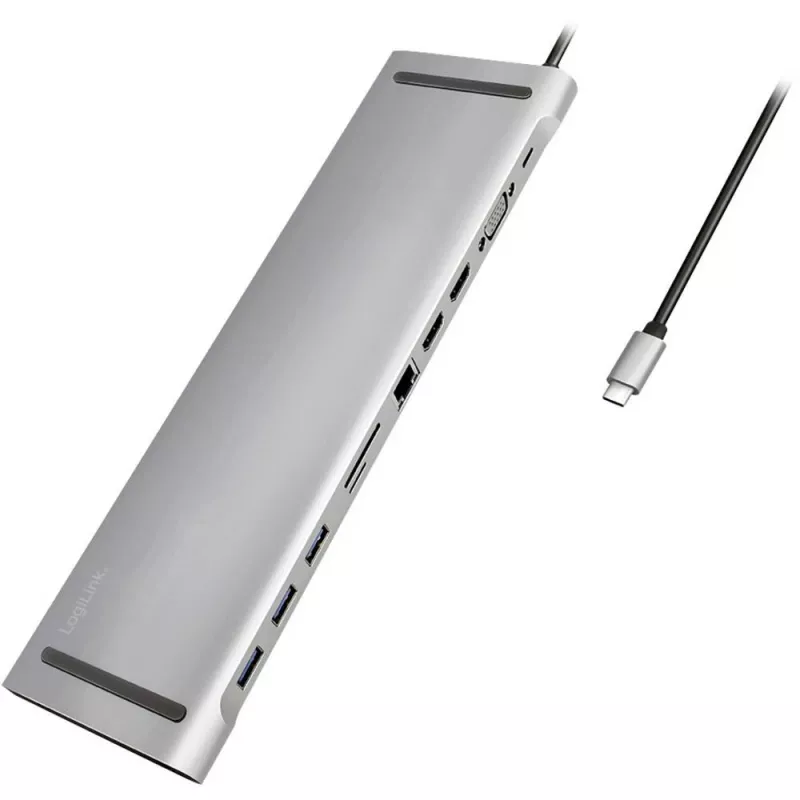

The LogiLink UA0373 is a wired USB 3.2 Gen 1 Type-C docking station with an aluminium housing that expands a USB-C laptop into a complete workstation. It offers two HDMI outputs, a VGA port, three USB-A 3.2 Gen 1 ports, a multi-card reader compatible with MMC, MicroSD, SD, SDHC and SDXC, a gigabit Ethernet port (10/100/1000 Mbit/s) and supports USB Power Delivery pass-through charging up to 100 W. Compact dimensions (80 × 280 × 17 mm) and a lightweight aluminium design suit office and home desk setups.

Advantages

The docking station delivers multiple display outputs including dual HDMI and VGA for flexible monitor setups, plus fast data transfer via USB 3.2 Gen 1 and the card reader. Integrated gigabit Ethernet ensures stable wired network connectivity, while up to 100 W Power Delivery allows charging the host laptop during use. Its aluminium housing provides a compact, durable solution for expanding ports on USB-C laptops.

Suitable for

• Connecting one or two external 4K/HD monitors and an additional VGA display
• Transferring files from USB flash drives and SD/MMC memory cards
• Providing a stable wired internet connection for video calls and large downloads
• Charging a USB-C laptop while using multiple peripherals

Key specifications

• Interface: USB 3.2 Gen 1 Type-C (wired)
• Video outputs: 2 × HDMI, 1 × VGA (D-Sub)
• USB ports: 3 × USB 3.2 Gen 1 Type-A
• Card reader: MMC, MicroSD, SD, SDHC, SDXC
• Ethernet: 1 × RJ-45, 10/100/1000 Mbit/s
• Power Delivery: pass-through charging up to 100 W
• Data transfer rate (USB): up to 5 Gbit/s
• Dimensions: 80 × 280 × 17 mm
• Weight: 0.24 kg
• Colour: Aluminium

How to use

Connect the LogiLink UA0373 to a USB-C port on your laptop. Attach external monitors to the HDMI and VGA ports as required, plug USB devices into the Type-A ports and insert memory cards into the card slot. Connect an Ethernet cable to the RJ-45 port for wired network access. If you need to charge the laptop while using the docking station, connect the laptop power adapter to the docking station’s USB-C power delivery input to enable pass-through charging up to 100 W.

Recommendations

For optimal display performance, use high-quality HDMI cables and verify your laptop’s USB-C port supports DisplayPort Alt Mode and Power Delivery. When transferring large files from memory cards or USB drives, connect devices to the USB 3.2 Gen 1 ports for maximum transfer speeds. Ensure proper ventilation around the docking station during extended use.
