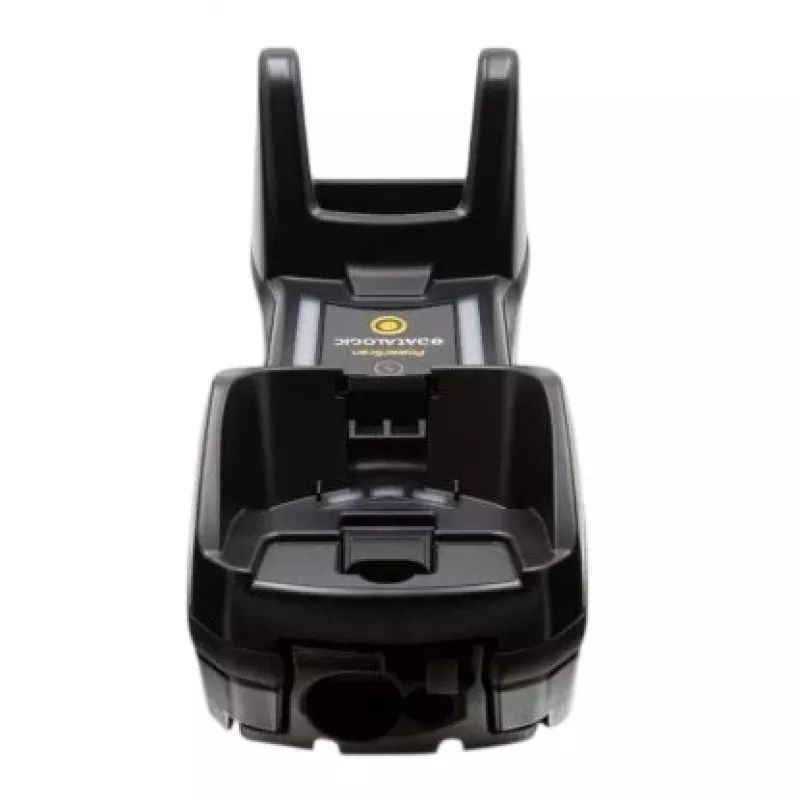

Datalogic BC9680 basstation/laddare Bluetooth Ethernet

The Datalogic BC9680-BT is a multi-interface base station and charger engineered for seamless integration with Datalogic Gryphon 4500 series imagers. Its strongest capability lies in combining Bluetooth wireless connectivity with Ethernet, USB, and RS-232 host interfaces, enabling reliable data transmission and efficient battery charging in a single compact unit.

Advantages

This base station provides flexible deployment options with desk or wall mounting, ensuring it fits neatly into retail, warehouse, or healthcare environments. Bluetooth 4.0 Class 1 technology delivers a wireless range up to 100 meters, allowing operators to move freely without losing connection. The integrated charging cradle keeps scanners ready for continuous use, while clear LED indicators for power, charge status, and Bluetooth connection simplify monitoring.

Suitable for

• Datalogic Gryphon GD4500 corded handheld scanners
• Datalogic Gryphon GM4500 cordless scanners
• Datalogic Gryphon GBT4500 Bluetooth scanners
• Point-of-sale and inventory management applications

Key specifications

• Host interfaces: Ethernet, USB (Type A), RS-232
• Wireless technology: Bluetooth 4.0 Class 1, up to 100 m range
• Charging capability for compatible Datalogic imagers
• Power input: 5VDC via external power supply (sold separately)
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Humidity: 5–95% non-condensing
• Mounting: desk or wall
• Certifications: RoHS, CE, FCC

Recommendations

Pair the BC9680-BT with a Datalogic Gryphon 4500 imager and a 5VDC power supply for a complete cordless data collection solution. For wall-mounted installations, ensure the mounting surface is stable and within cable reach of the host system.
