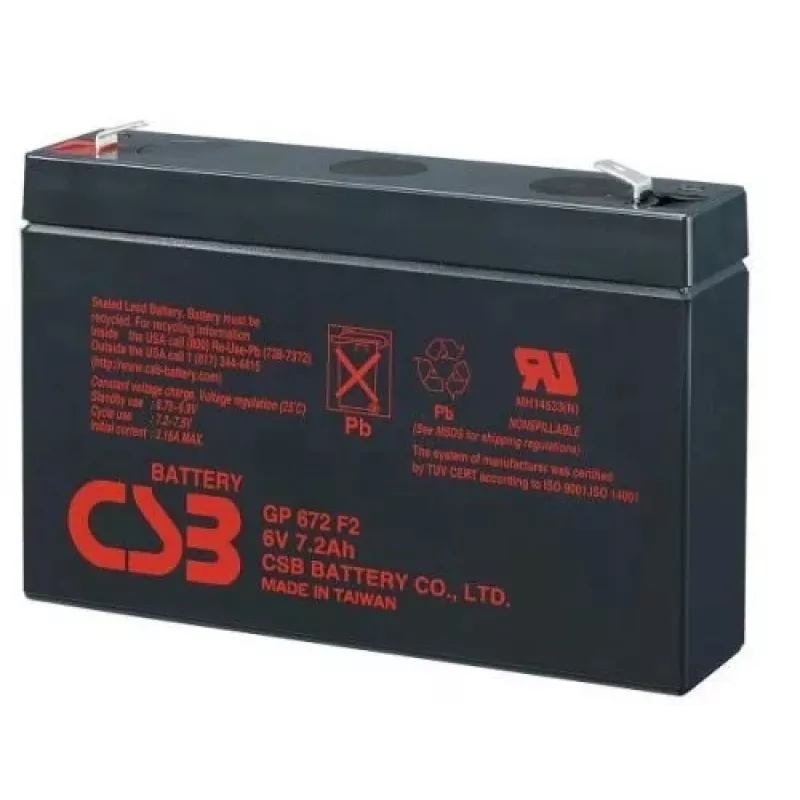

Batteri GP672 F2 6V 7,2Ah

With a 7.2 Ah capacity and 6V output, the CSB GP672 delivers dependable power for UPS systems, emergency lighting, and security devices. Its AGM technology ensures maintenance-free operation and a spill-proof design, while the F2 terminals provide secure connections.

Overview

The CSB GP672 is a valve-regulated sealed lead acid battery engineered for reliable performance in a wide range of applications. Utilizing Absorbent Glass Mat (AGM) technology, it offers a maintenance-free and spill-proof power solution. The battery is designed for float service with a design life of 3-5 years, making it a cost-effective choice for standby and cyclic use.

What stands out

• High discharge rate: supports up to 108A for 5 seconds, ideal for UPS and emergency power.
• Low self-discharge: less than 3% per month at 20°C, ensuring readiness after storage.
• Wide operating temperature range: from -15°C to 50°C for discharge, suitable for diverse environments.
• Maintenance-free AGM construction: no need to check electrolyte levels, with leak-proof design.

Technical details

• Battery type: Sealed Lead Acid (SLA) with AGM technology
• Voltage: 6V
• Capacity: 7.2 Ah
• Terminal type: F2 (Faston Tab 250)
• Rechargeable: Yes
• Maintenance free: Yes
• Design life (float): 3-5 years
• Max. discharge current (5 sec): 108A
• Internal resistance: approx. 19 mΩ
• Operating temperature (discharge): -15°C to 50°C
• Operating temperature (charge): -15°C to 40°C
• Operating temperature (storage): -15°C to 40°C
• Float charge voltage: 6.75 - 6.90V @ 25°C
• Cycle use voltage: 7.20 - 7.50V @ 25°C
• Max. charging current: 2.16A
• Self-discharge: less than 3% per month at 20°C
• Construction: Spill-proof, Valve Regulated Lead Acid (VRLA)
• Typical applications: UPS systems, emergency lighting, security systems, medical equipment, toys

Our verdict

The CSB GP672 combines robust performance with maintenance-free convenience, making it a reliable power source for critical backup and standby applications.
