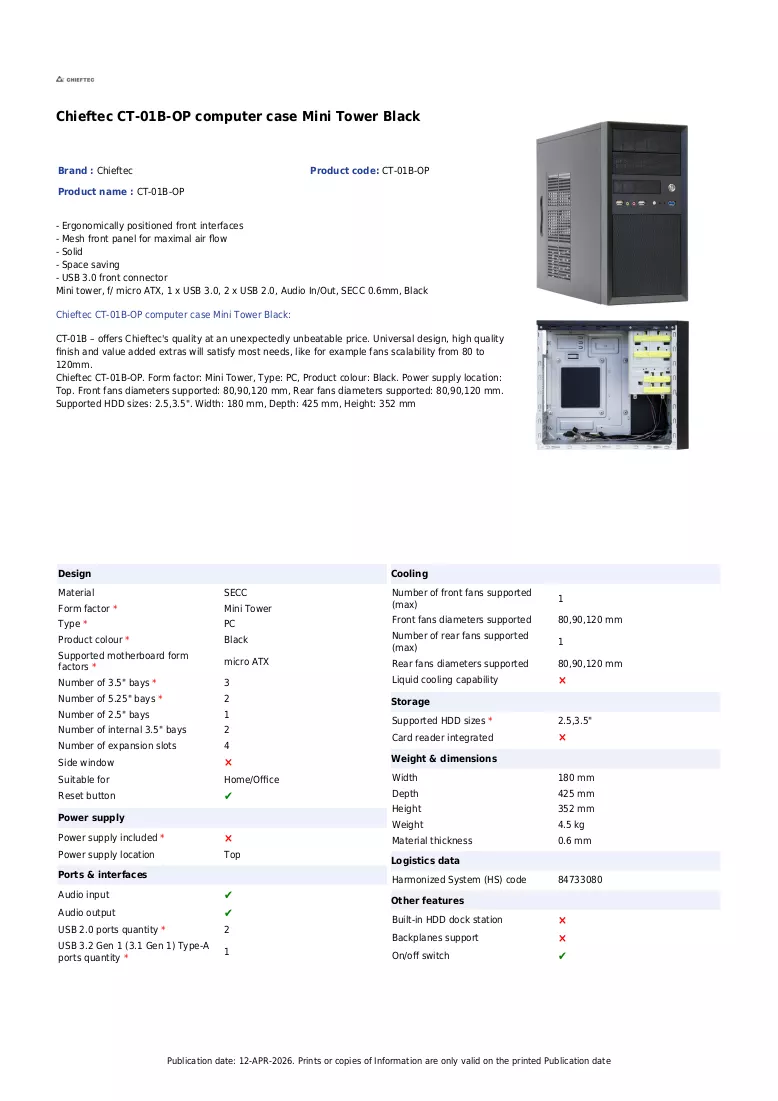

Chieftec CT-01B-OP datorchassi Mini Tower svart

The Chieftec CT-01B-OP Mini Tower is a compact black PC case designed for efficient airflow and flexible cooling options. It supports front and rear fans in 80 mm, 90 mm and 120 mm sizes, and accepts both 2.5" and 3.5" drives. With a small footprint (180 mm W x 425 mm D x 352 mm H) and a sturdy SECC steel construction, the case fits Micro ATX systems and provides basic connectivity including two USB 2.0 ports and one USB 3.2 Gen 1 Type-A port.

Advantages

The case offers a balance of compact size and expandability, with multiple fan size options for improved cooling and a mix of drive bays for storage flexibility. Its Mini Tower form factor and SECC material deliver durability while saving desk space. Front I/O includes USB 3.2 Gen 1 for faster data transfer alongside two USB 2.0 ports for legacy devices.

Suitable for

• Home or office Micro ATX builds
• Compact systems requiring several 3.5" and 2.5" drives
• Budget-oriented builds needing basic cooling options

Key specifications

• Form factor: Mini Tower
• Supported motherboard: Micro ATX
• Drive bays: 3 × 3.5", 1 × 2.5", 2 × 5.25"
• Fan support: 80 mm / 90 mm / 120 mm (front and rear)
• Front I/O: 2 × USB 2.0, 1 × USB 3.2 Gen 1 (Type-A)
• Material: SECC steel
• Colour: Black
• Dimensions (W×D×H): 180 × 425 × 352 mm
• Weight: 4.5 kg
• Power supply: not included

How to use

Install a Micro ATX motherboard and secure the power supply (not included) in the designated compartment. Mount 3.5" and 2.5" drives in the appropriate bays and attach front or rear fans according to the desired airflow configuration, using 80 mm, 90 mm or 120 mm fans as supported. Connect front-panel USB ports to the motherboard headers and route cables to maintain unobstructed airflow.

Recommendations

For balanced cooling and noise, consider installing a 120 mm fan at the rear and a matched-size intake at the front if space allows. Use SSDs in the 2.5" bay for faster boot and application performance, and reserve 3.5" bays for mass storage. Ensure the chosen power supply dimensions are compatible with the Mini Tower layout.
