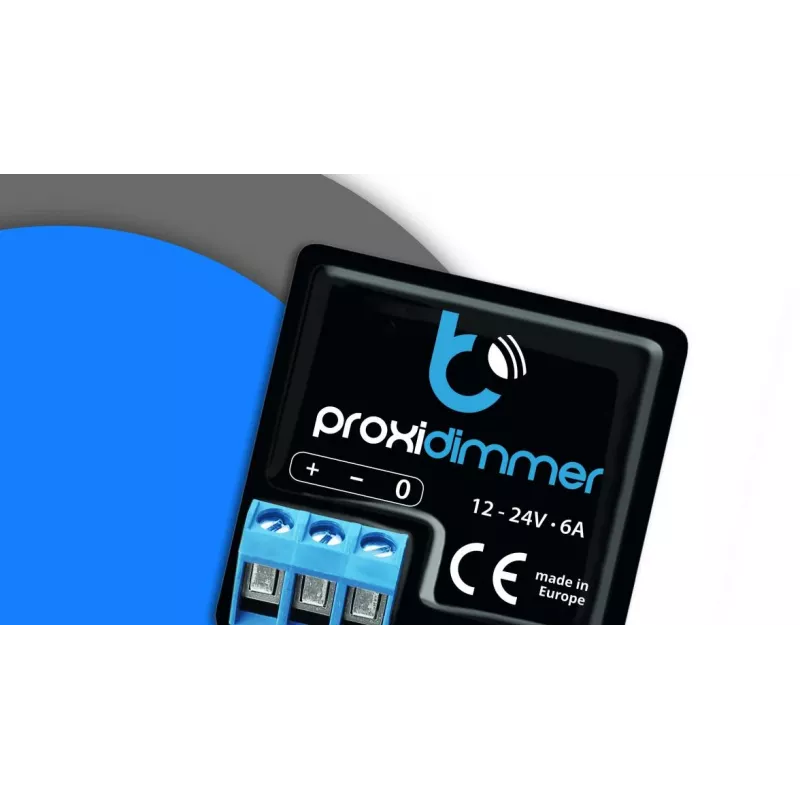

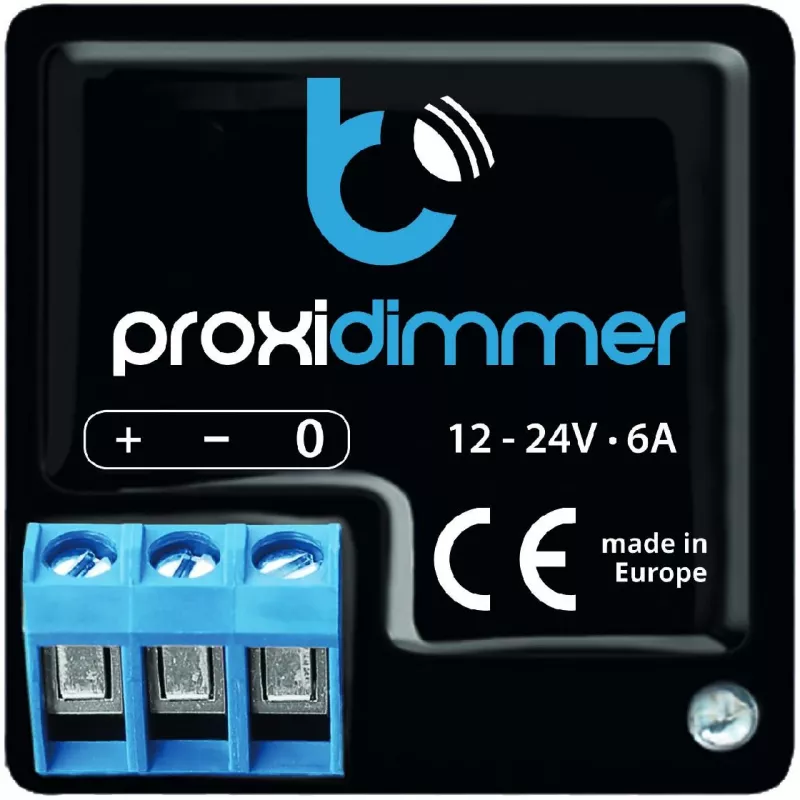

BLEBOX Proxidimmer närhetssensor

The Blebox Proxidimmer is a proximity sensor with a range of up to 7 cm through wood, stone, or glass, enabling touchless operation. It is designed for areas with strict hygiene requirements, such as hospital environments, and ensures safe operation in wet rooms due to its low voltage.

Key features

• Extremely sensitive – range up to 7 cm through wood, stone, glass
• Touchless operation
• Ideal for areas with strict hygiene requirements (e.g., hospital environment)
• Safe operation in wet rooms due to low voltage

Specifications

• Supply voltage: 12 – 24 V DC
• Maximum current: 5A
• Maximum power: 120 W
• Power consumption: < 0.1W
• Dimensions: 38 x 38 x 19 mm
• Sensor: proximity, capacitive
• Housing: made of polyurethane composition without halogens, self-extinguishing for thermal class B (130°C)
• Protection degree: IP20
• Calibration: automatic
• Mounting method: under non-conductive surface, adhesive strips
• Controller operating temperature: from -10 to +40°C
