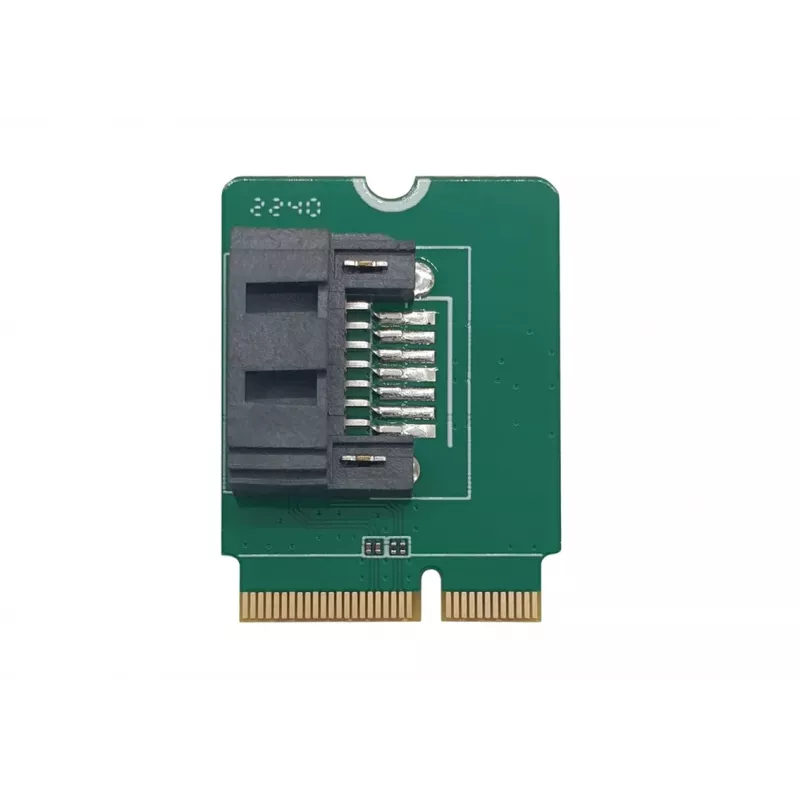

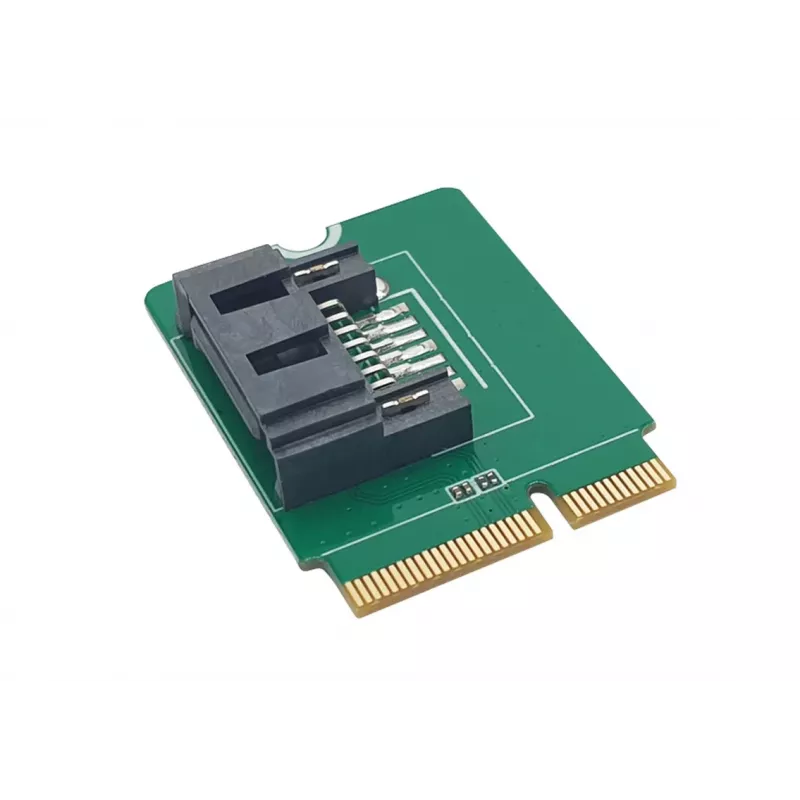

ALLNET Radxa M.2 E-Key till SATA-adapter (RA013)

Many single-board computers, such as the Radxa Rock Pi 4 series, lack a native SATA port for connecting 2.5-inch SSDs or hard drives. The ALLNET RA013 solves this by converting an available M.2 E-Key slot into a standard SATA III port, enabling high-speed storage expansion without external enclosures.

Who is it for

Makers, homelab enthusiasts, and developers using Radxa Rock Pi 4 boards or other devices with an M.2 E-Key slot who need to attach a SATA drive for additional storage, faster boot, or media serving.

Main features

• Host interface: M.2 E-Key
• Device interface: 1x SATA 3.0 (7-pin)
• SATA standard: SATA III (6 Gbps)
• Controller chipset: ASMedia ASM1061
• Bus-powered, no external power required
• Supports NCQ, TRIM, and hot-swap

Specifications

• Maximum data transfer rate: 6 Gbps
• Number of storage drives supported: 1
• Material: PCB
• Plug and Play: Yes
• LED indicators: No

Tips

Ensure your M.2 E-Key slot is free and accessible. The adapter is driverless and works with any OS that supports the SATA controller. For best performance, use a SATA III SSD.
