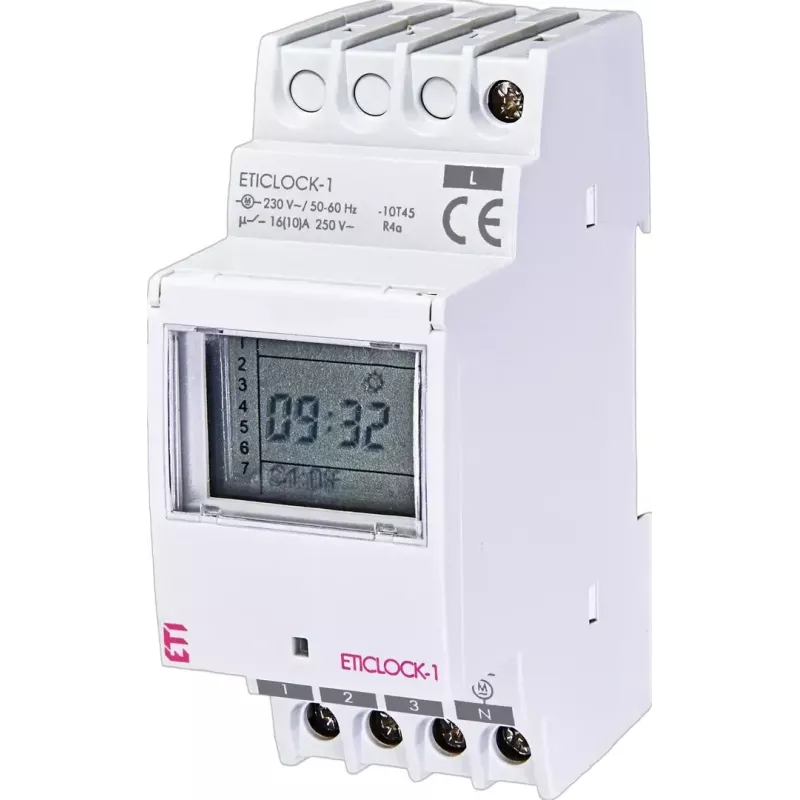

ETI TIME SWITCH DIGITAL MODUL CLOCK-1 1P 16A

The ETI TIME SWITCH DIGITAL MODUL CLOCK-1 is a compact digital time switch designed for DIN rail mounting. It offers precise control of electrical loads with a single channel and a switching capacity of 16A. Ideal for lighting, heating, and ventilation applications, this timer provides flexible programming options including daily, weekly, astronomical, pulse, and random modes.

Advantages

Easy to program with a clear LCD display and intuitive interface. The 6-year power reserve ensures settings are retained even during power outages. With 250 memory cells (125 ON/OFF pairs), it accommodates complex schedules. The astronomical function automatically adjusts for sunrise and sunset, saving energy and enhancing convenience.

Suitable for

• Lighting control in commercial and residential buildings
• Heating and ventilation scheduling
• Industrial automation tasks requiring timed switching
• Energy management systems

Key specifications

• Supply Voltage: 230V AC
• Max Switching Current (AC1): 16 A
• Contact Configuration: 1 x SPDT (NO/NC)
• Mounting Type: DIN Rail
• Number of Channels: 1
• Programming Modes: Daily, Weekly, Astronomical, Pulse, Random
• Number of Programs: 250 memory cells (125 ON/OFF pairs)
• Power Reserve: 6 years (Lithium battery)
• Minimum Switching Time: 1 second
• Power Consumption: 1.5 W
• Operating Temperature: -20 to 50 °C
• Protection Rating: IP20 (front panel)
• Terminal Capacity: 2.5 mm²
• Time Accuracy: ±1 sec/day
• Display Type: LCD
• Module Width: 2 modules (35 mm)
• Switching Capacity (Resistive): 4000 VA

Recommendations

For optimal performance, ensure the device is installed by a qualified electrician. Use appropriate circuit protection and follow local electrical codes. The time switch is suitable for indoor use only.
